library(rethinking)
data(WaffleDivorce)
d <- WaffleDivorce5 Multivariate Linear Models
McElreath’s listed reasons for multivariable regression include
- statistical control for confounds,
- multiple causation, and
- interactions.
We’ll approach the first two in this chapter. Interactions are reserved for Chapter 7.
5.0.0.1 Rethinking: Causal inference
“Despite its central importance, there is no unified approach to causal inference yet in the sciences or in statistics” (McElreath, 2015, p. 120). McElreath didn’t cover this much in this edition of the text. However, he peppered causal inference throughout his second edition (McElreath, 2020). To dip into the topic, you might check out the recent blog post by Finn Lattimore and David Rohde, Causal inference with Bayes rule, or McElreath’s three-part blog series, starting here.
5.1 Spurious associations
Load the Waffle House data.
Unload rethinking and load brms and, while we’re at it, the tidyverse.
rm(WaffleDivorce)
detach(package:rethinking, unload = T)
library(tidyverse)
library(brms)I’m not going to show the output, but you might go ahead and investigate the data with the typical functions. E.g.,
head(d)

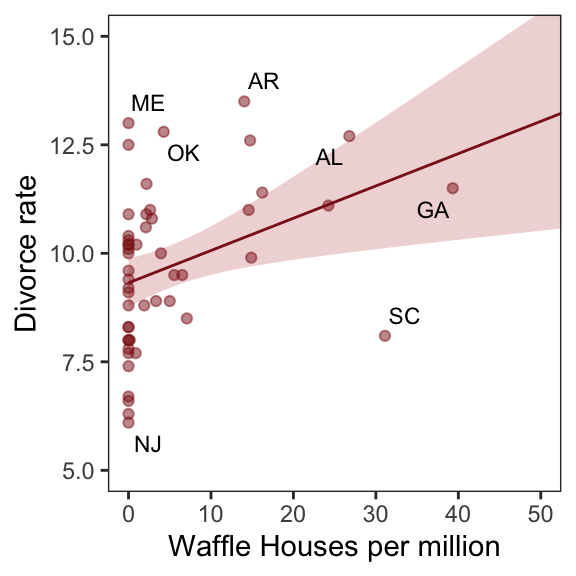

glimpse(d)Now we have our data, we can reproduce Figure 5.1. One convenient way to get the handful of sate labels into the plot was with the geom_text_repel() function from the ggrepel package (Slowikowski, 2022). But first, we spent the last few chapters warming up with ggplot2. Going forward, each chapter will have its own plot theme. In this chapter, we’ll characterize the plots with theme_bw() + theme(panel.grid = element_rect()) and coloring based off of "firebrick".
library(ggrepel)
d %>%
ggplot(aes(x = WaffleHouses / Population, y = Divorce)) +
stat_smooth(method = "lm", fullrange = T, linewidth = 1/2,
color = "firebrick4", fill = "firebrick", alpha = 1/5) +
geom_point(size = 1.5, color = "firebrick4", alpha = 1/2) +
geom_text_repel(data = d %>% filter(Loc %in% c("ME", "OK", "AR", "AL", "GA", "SC", "NJ")),
aes(label = Loc),
size = 3, seed = 1042) + # this makes it reproducible
scale_x_continuous("Waffle Houses per million", limits = c(0, 55)) +
ylab("Divorce rate") +
coord_cartesian(xlim = c(0, 50), ylim = c(5, 15)) +
theme_bw() +
theme(panel.grid = element_blank())

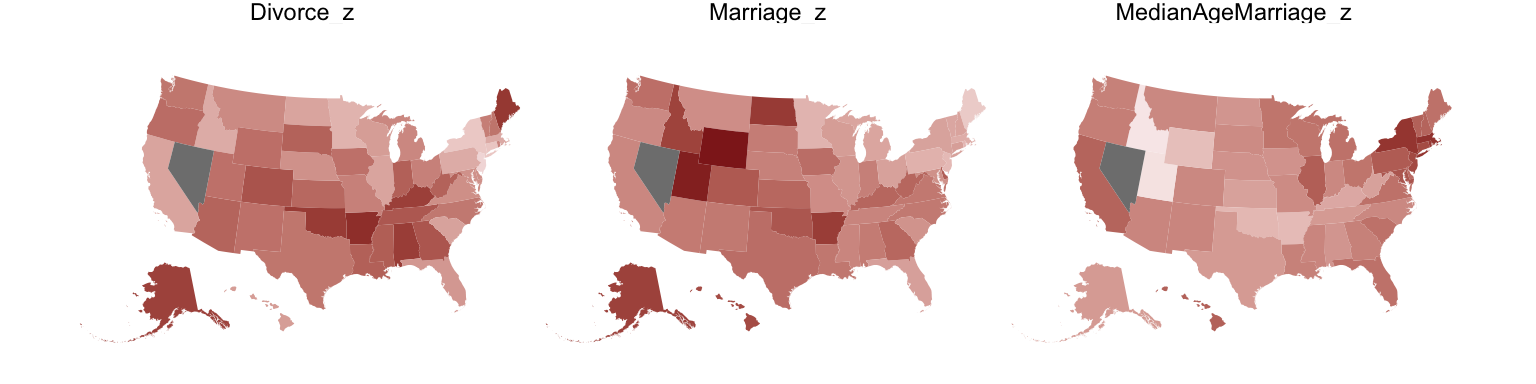

Since these are geographically-based data, we might plot our three major variables in a map format. The tigris package (Walker, 2022) provides latitude and longitude data for the 50 states. We’ll extract the geographic coordinates with the tigris::states() function and then shift and rescale the coordinates for Alaska and Hawaii with the tigris::shift_geometry() function. As part of the workflow, we’ll combine the geographic coordinates with the d data set with help from the right_join() function.
library(tigris)
d_states <- d %>%
# standardize these three variables to put them all on the same scale
mutate(Divorce_z = (Divorce - mean(Divorce)) / sd(Divorce),
MedianAgeMarriage_z = (MedianAgeMarriage - mean(MedianAgeMarriage)) / sd(MedianAgeMarriage),
Marriage_z = (Marriage - mean(Marriage)) / sd(Marriage)) %>%
# add in the geographic coordinates
right_join(states(class = "sf", cb = TRUE) %>%
# shift and rescale the coordinates for Alaska, Puerto Rico, and Hawaii
shift_geometry() %>%
# drop Puerto Rico
filter(NAME != "Puerto Rico"),
by = c("Location" = "NAME")) %>%
# convert to the long format for faceting
pivot_longer(ends_with("_z")) Now we plot the thing with the handy ggplot2::geom_sf() function.
d_states %>%
ggplot() +
geom_sf(aes(fill = value, geometry = geometry),
size = 0) +
scale_fill_gradient(low = "#f8eaea", high = "firebrick4") +
coord_sf(xlim = c(-29e5, 21e5),
ylim = c(-2e6, 2e6)) +
theme_void() +
theme(legend.position = "none",
strip.text = element_text(margin = margin(0, 0, 0.5, 0))) +
facet_wrap(~name)
One of the advantages of this visualization method is it just became clear that Nevada is missing from the WaffleDivorce data. Execute d %>% distinct(Location) to see for yourself and click here to find out why it’s missing. Those missing data should motivate the skills we’ll cover in Chapter 14. But let’s get back on track.
Here we’ll officially standardize the predictor, MedianAgeMarriage.
d <- d %>%
mutate(MedianAgeMarriage_s = (MedianAgeMarriage - mean(MedianAgeMarriage)) /
sd(MedianAgeMarriage))Now we’re ready to fit the first univariable model.
b5.1 <- brm(
data = d,
family = gaussian,
Divorce ~ 1 + MedianAgeMarriage_s,
prior = c(prior(normal(10, 10), class = Intercept),
prior(normal(0, 1), class = b),
prior(uniform(0, 10), class = sigma, ub = 10)),
iter = 2000, warmup = 500, chains = 4, cores = 4,
seed = 5,
file = "fits/b05.01")Check the summary.
print(b5.1) Family: gaussian
Links: mu = identity
Formula: Divorce ~ 1 + MedianAgeMarriage_s
Data: d (Number of observations: 50)
Draws: 4 chains, each with iter = 2000; warmup = 500; thin = 1;
total post-warmup draws = 6000
Regression Coefficients:
Estimate Est.Error l-95% CI u-95% CI Rhat Bulk_ESS Tail_ESS
Intercept 9.69 0.21 9.26 10.11 1.00 5016 3879
MedianAgeMarriage_s -1.04 0.21 -1.45 -0.62 1.00 5399 3677
Further Distributional Parameters:
Estimate Est.Error l-95% CI u-95% CI Rhat Bulk_ESS Tail_ESS
sigma 1.52 0.16 1.24 1.87 1.00 4871 4171
Draws were sampled using sampling(NUTS). For each parameter, Bulk_ESS
and Tail_ESS are effective sample size measures, and Rhat is the potential
scale reduction factor on split chains (at convergence, Rhat = 1).We’ll employ fitted() to make Figure 5.2.b. In preparation for fitted() we’ll make a new tibble, nd, composed of a handful of densely-packed values for our predictor, MedianAgeMarriage_s. With the newdata argument, we’ll use those values to return model-implied expected values for Divorce.
# define the range of `MedianAgeMarriage_s` values we'd like to feed into `fitted()`
nd <- tibble(MedianAgeMarriage_s = seq(from = -3, to = 3.5, length.out = 30))
# now use `fitted()` to get the model-implied trajectories
f <- fitted(b5.1, newdata = nd) %>%
data.frame() %>%
# tack the `nd` data onto the `fitted()` results
bind_cols(nd)
# plot
ggplot(data = f,
aes(x = MedianAgeMarriage_s, y = Estimate)) +
geom_smooth(aes(ymin = Q2.5, ymax = Q97.5),
stat = "identity",
fill = "firebrick", color = "firebrick4", alpha = 1/5, linewidth = 1/4) +
geom_point(data = d,
aes(y = Divorce),
size = 2, color = "firebrick4") +
ylab("Divorce") +
coord_cartesian(xlim = range(d$MedianAgeMarriage_s),
ylim = range(d$Divorce)) +
theme_bw() +
theme(panel.grid = element_blank())
Before fitting the next model, we’ll standardize Marriage.
d <- d %>%
mutate(Marriage_s = (Marriage - mean(Marriage)) / sd(Marriage))We’re ready to fit our second univariable model, this time with Marriage_s as the predictor.
b5.2 <- brm(
data = d,
family = gaussian,
Divorce ~ 1 + Marriage_s,
prior = c(prior(normal(10, 10), class = Intercept),
prior(normal(0, 1), class = b),
prior(uniform(0, 10), class = sigma, ub = 10)),
iter = 2000, warmup = 500, chains = 4, cores = 4,
seed = 5,
file = "fits/b05.02")print(b5.2) Family: gaussian
Links: mu = identity
Formula: Divorce ~ 1 + Marriage_s
Data: d (Number of observations: 50)
Draws: 4 chains, each with iter = 2000; warmup = 500; thin = 1;
total post-warmup draws = 6000
Regression Coefficients:
Estimate Est.Error l-95% CI u-95% CI Rhat Bulk_ESS Tail_ESS
Intercept 9.69 0.25 9.21 10.19 1.00 6029 4464
Marriage_s 0.64 0.24 0.17 1.10 1.00 5286 4177
Further Distributional Parameters:
Estimate Est.Error l-95% CI u-95% CI Rhat Bulk_ESS Tail_ESS
sigma 1.75 0.19 1.43 2.16 1.00 4636 3885
Draws were sampled using sampling(NUTS). For each parameter, Bulk_ESS
and Tail_ESS are effective sample size measures, and Rhat is the potential
scale reduction factor on split chains (at convergence, Rhat = 1).Now we’ll wangle and plot our version of Figure 5.2.a.

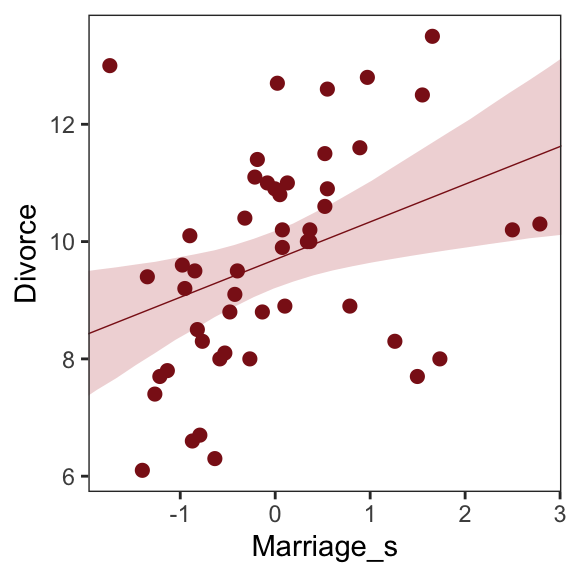

nd <- tibble(Marriage_s = seq(from = -2.5, to = 3.5, length.out = 30))
f <- fitted(b5.2, newdata = nd) %>%
data.frame() %>%
bind_cols(nd)
ggplot(data = f,
aes(x = Marriage_s, y = Estimate)) +
geom_smooth(aes(ymin = Q2.5, ymax = Q97.5),
stat = "identity",
fill = "firebrick", color = "firebrick4", alpha = 1/5, linewidth = 1/4) +
geom_point(data = d,
aes(y = Divorce),
size = 2, color = "firebrick4") +
ylab("Divorce") +
coord_cartesian(xlim = range(d$Marriage_s),
ylim = range(d$Divorce)) +
theme_bw() +
theme(panel.grid = element_blank())
But merely comparing parameter means between different bivariate regressions is no way to decide which predictor is better Both of these predictors could provide independent value, or they could be redundant, or one could eliminate the value of the other. So we’ll build a multivariate model with the goal of measuring the partial value of each predictor. The question we want answered is:
What is the predictive value of a variable, once I already know all of the other predictor variables? (p. 123, emphasis in the original)
5.1.1 Multivariate notation
Now we’ll get both predictors in there with our very first multivariable model. We can write the statistical model as
\[\begin{align*} \text{Divorce}_i & \sim \operatorname{Normal}(\mu_i, \sigma) \\ \mu_i & = \alpha + \beta_1 \text{Marriage\_s}_i + \beta_2 \text{MedianAgeMarriage\_s}_i \\ \alpha & \sim \operatorname{Normal}(10, 10) \\ \beta_1 & \sim \operatorname{Normal}(0, 1) \\ \beta_2 & \sim \operatorname{Normal}(0, 1) \\ \sigma & \sim \operatorname{Uniform}(0, 10). \end{align*}\]
It might help to read the \(+\) symbols as “or” and then say: A State’s divorce rate can be a function of its marriage rate or its median age at marriage. The “or” indicates independent associations, which may be purely statistical or rather causal. (p. 124, emphasis in the original)
5.1.2 Fitting the model
Much like we used the + operator to add single predictors to the intercept, we just use more + operators in the formula argument to add more predictors. Also notice we’re using the same prior prior(normal(0, 1), class = b) for both predictors. Within the brms framework, they are both of class = b. But if we wanted their priors to differ, we’d make two prior() statements and differentiate them with the coef argument. You’ll see examples of that later on.
b5.3 <- brm(
data = d,
family = gaussian,
Divorce ~ 1 + Marriage_s + MedianAgeMarriage_s,
prior = c(prior(normal(10, 10), class = Intercept),
prior(normal(0, 1), class = b),
prior(uniform(0, 10), class = sigma, ub = 10)),
iter = 2000, warmup = 500, chains = 4, cores = 4,
seed = 5,
file = "fits/b05.03")Our multivariable summary will have multiple rows below the ‘Intercept’ row.
print(b5.3) Family: gaussian
Links: mu = identity
Formula: Divorce ~ 1 + Marriage_s + MedianAgeMarriage_s
Data: d (Number of observations: 50)
Draws: 4 chains, each with iter = 2000; warmup = 500; thin = 1;
total post-warmup draws = 6000
Regression Coefficients:
Estimate Est.Error l-95% CI u-95% CI Rhat Bulk_ESS Tail_ESS
Intercept 9.69 0.21 9.27 10.11 1.00 5686 4021
Marriage_s -0.12 0.30 -0.72 0.48 1.00 3898 3841
MedianAgeMarriage_s -1.12 0.30 -1.71 -0.53 1.00 3874 4043
Further Distributional Parameters:
Estimate Est.Error l-95% CI u-95% CI Rhat Bulk_ESS Tail_ESS
sigma 1.52 0.16 1.25 1.90 1.00 5164 3962
Draws were sampled using sampling(NUTS). For each parameter, Bulk_ESS
and Tail_ESS are effective sample size measures, and Rhat is the potential
scale reduction factor on split chains (at convergence, Rhat = 1).The mcmc_plot() function is an easy way to get a default coefficient plot. You just put the brmsfit object into the function.

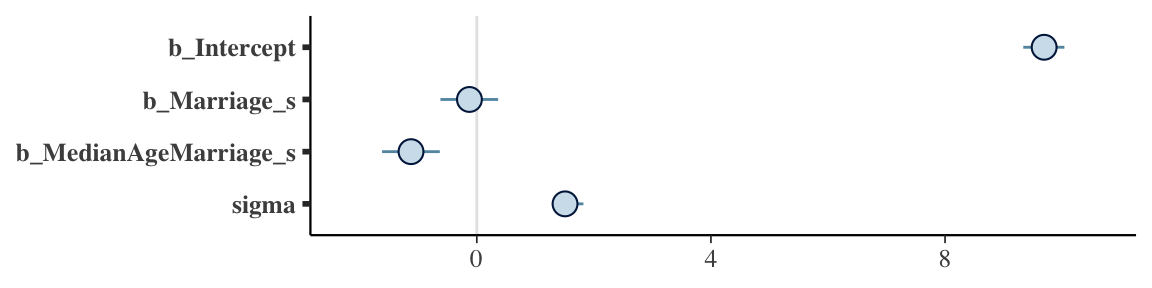

mcmc_plot(b5.3)
There are numerous ways to make a coefficient plot. Another is with the mcmc_intervals() function from the bayesplot package. A nice feature of the bayesplot package is its convenient way to alter the color scheme with the color_scheme_set() function. Here, for example, we’ll make the theme red. But note how the mcmc_intervals() function requires you to work with the posterior_samples() instead of the brmsfit object.

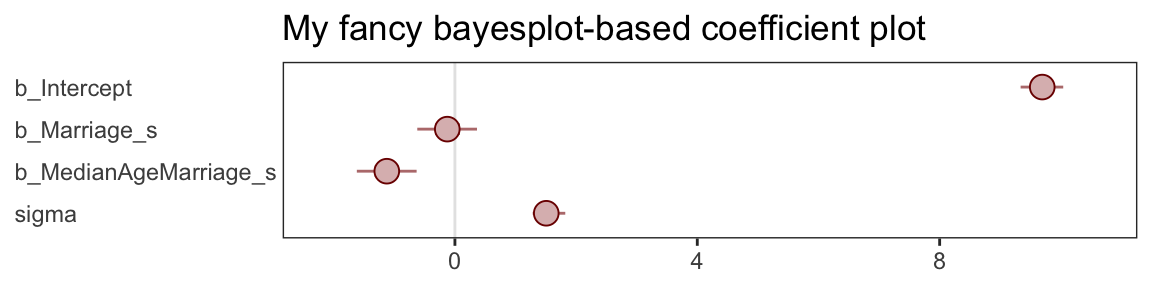

library(bayesplot)
post <- as_draws_df(b5.3)
color_scheme_set("red")
mcmc_intervals(post %>% select(b_Intercept:sigma),
prob = .5,
point_est = "median") +
ggtitle("My fancy bayesplot-based coefficient plot") +
theme_bw() +
theme(axis.text.y = element_text(hjust = 0),
axis.ticks.y = element_blank(),
panel.grid = element_blank())
Because bayesplot produces a ggplot2 object, the plot was adjustable with familiar ggplot2 syntax. For more ideas, check out Gabry’s (2022) vignette, Plotting MCMC draws using the bayesplot package.

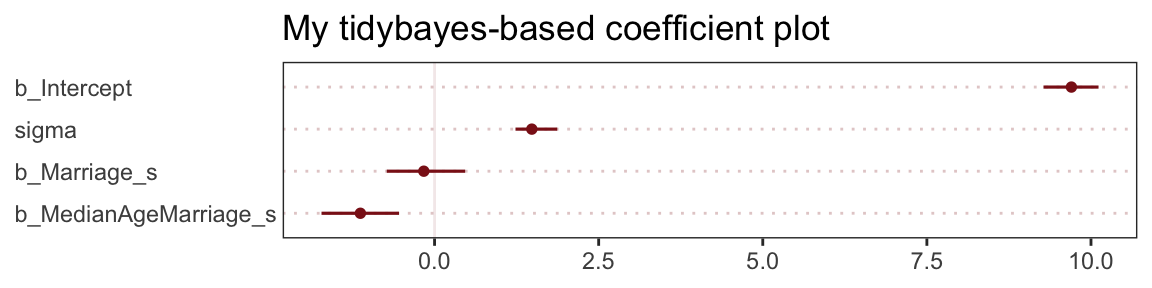

The tidybaes::stat_pointinterval() function offers a third way, this time with a more ground-up ggplot2 workflow.
library(tidybayes)
post %>%
select(b_Intercept:sigma) %>%
gather() %>%
ggplot(aes(x = value, y = reorder(key, value))) + # note how we used `reorder()` to arrange the coefficients
geom_vline(xintercept = 0, color = "firebrick4", alpha = 1/10) +
stat_pointinterval(point_interval = mode_hdi, .width = .95,
size = 3/4, color = "firebrick4") +
labs(title = "My tidybayes-based coefficient plot",
x = NULL, y = NULL) +
theme_bw() +
theme(axis.text.y = element_text(hjust = 0),
axis.ticks.y = element_blank(),
panel.grid = element_blank(),
panel.grid.major.y = element_line(color = alpha("firebrick4", 1/4), linetype = 3))
The substantive interpretation of all those coefficient plots is: “Once we know median age at marriage for a State, there is little or no additive predictive power in also knowing the rate of marriage in that State” (p. 126, emphasis in the original).
5.1.3 Plotting multivariate posteriors
McElreath’s prose is delightfully deflationary. “There is a huge literature detailing a variety of plotting techniques that all attempt to help one understand multiple linear regression. None of these techniques is suitable for all jobs, and most do not generalize beyond linear regression” (p. 126). Now you’re inspired, let’s learn three:
- Predictor residual plots,

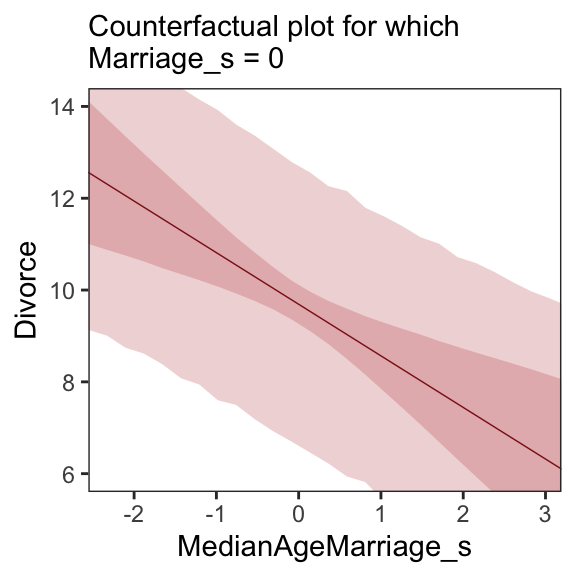

- Counterfactual plots, and
- Posterior prediction plots.

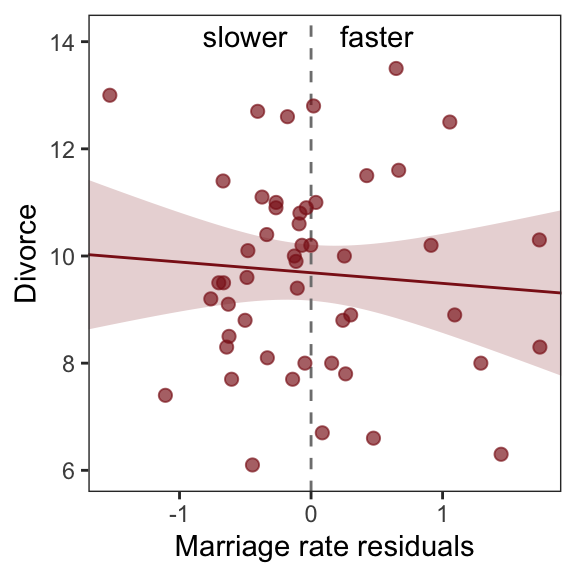

5.1.3.1 Predictor residual plots

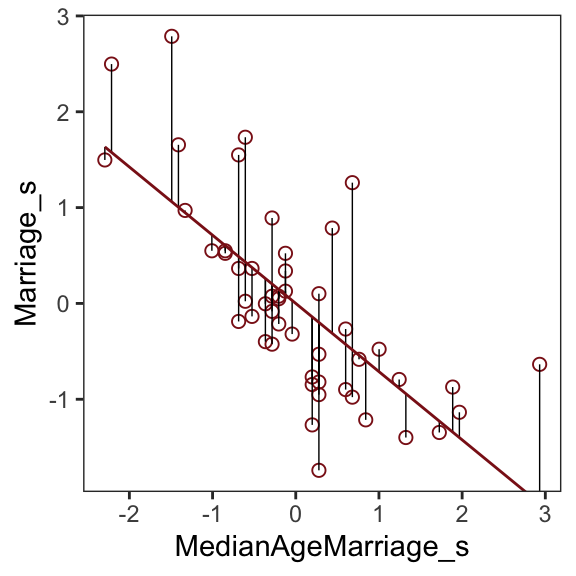

To get ready to make our residual plots, we’ll predict Marriage_s with MedianAgeMarriage_s.
b5.4 <- brm(
data = d,
family = gaussian,
Marriage_s ~ 1 + MedianAgeMarriage_s,
prior = c(prior(normal(0, 10), class = Intercept),
prior(normal(0, 1), class = b),
prior(uniform(0, 10), class = sigma, ub = 10)),
iter = 2000, warmup = 500, chains = 4, cores = 4,
seed = 5,
file = "fits/b05.04")print(b5.4) Family: gaussian
Links: mu = identity
Formula: Marriage_s ~ 1 + MedianAgeMarriage_s
Data: d (Number of observations: 50)
Draws: 4 chains, each with iter = 2000; warmup = 500; thin = 1;
total post-warmup draws = 6000
Regression Coefficients:
Estimate Est.Error l-95% CI u-95% CI Rhat Bulk_ESS Tail_ESS
Intercept 0.00 0.10 -0.20 0.20 1.00 4521 4263
MedianAgeMarriage_s -0.71 0.11 -0.92 -0.51 1.00 5382 3616
Further Distributional Parameters:
Estimate Est.Error l-95% CI u-95% CI Rhat Bulk_ESS Tail_ESS
sigma 0.72 0.08 0.59 0.89 1.00 5191 4374
Draws were sampled using sampling(NUTS). For each parameter, Bulk_ESS
and Tail_ESS are effective sample size measures, and Rhat is the potential
scale reduction factor on split chains (at convergence, Rhat = 1).With fitted(), we compute the expected values for each state (with the exception of Nevada). Since the MedianAgeMarriage_s values for each state are in the date we used to fit the model, we’ll omit the newdata argument.
f <- fitted(b5.4) %>%
data.frame() %>%
bind_cols(d)
head(f) Estimate Est.Error Q2.5 Q97.5 Location Loc Population MedianAgeMarriage Marriage Marriage.SE Divorce
1 0.4316862 0.1196308 0.2012449377 0.6638856 Alabama AL 4.78 25.3 20.2 1.27 12.7
2 0.4889224 0.1242981 0.2492018520 0.7331023 Alaska AK 0.71 25.2 26.0 2.93 12.5
3 0.1455049 0.1037405 -0.0570240626 0.3503361 Arizona AZ 6.33 25.8 20.3 0.98 10.8
4 1.0040487 0.1792362 0.6621225656 1.3565122 Arkansas AR 2.92 24.3 26.4 1.70 13.5
5 -0.4268576 0.1199102 -0.6603236882 -0.1925980 California CA 37.25 26.8 19.1 0.39 8.0
6 0.2027412 0.1057651 -0.0006504985 0.4105226 Colorado CO 5.03 25.7 23.5 1.24 11.6
Divorce.SE WaffleHouses South Slaves1860 Population1860 PropSlaves1860 MedianAgeMarriage_s Marriage_s
1 0.79 128 1 435080 964201 0.45 -0.6062895 0.02264406
2 2.05 0 0 0 0 0.00 -0.6866993 1.54980162
3 0.74 18 0 0 0 0.00 -0.2042408 0.04897436
4 1.22 41 1 111115 435450 0.26 -1.4103870 1.65512283
5 0.24 0 0 0 379994 0.00 0.5998567 -0.26698927
6 0.94 11 0 0 34277 0.00 -0.2846505 0.89154405After a little data processing, we can make Figure 5.3.
f %>%
ggplot(aes(x = MedianAgeMarriage_s, y = Marriage_s)) +
geom_point(size = 2, shape = 1, color = "firebrick4") +
geom_segment(aes(xend = MedianAgeMarriage_s, yend = Estimate),
linewidth = 1/4) +
geom_line(aes(y = Estimate),
color = "firebrick4") +
coord_cartesian(ylim = range(d$Marriage_s)) +
theme_bw() +
theme(panel.grid = element_blank())
We get the residuals with the well-named residuals() function. Much like with brms::fitted(), brms::residuals() returns a four-vector matrix with the number of rows equal to the number of observations in the original data (by default, anyway). The vectors have the familiar names: Estimate, Est.Error, Q2.5, and Q97.5. See the brms reference manual (Bürkner, 2022) for details.
With our residuals in hand, we just need a little more data processing to make Figure 5.4.a.
r <- residuals(b5.4) %>%
# to use this in ggplot2, we need to make it a tibble or data frame
data.frame() %>%
bind_cols(d)
# for the annotation at the top
text <- tibble(
Estimate = c(-0.5, 0.5),
Divorce = 14.1,
label = c("slower", "faster"))
# plot
r %>%
ggplot(aes(x = Estimate, y = Divorce)) +
stat_smooth(method = "lm", fullrange = T,
color = "firebrick4", fill = "firebrick4",
alpha = 1/5, linewidth = 1/2) +
geom_vline(xintercept = 0, linetype = 2, color = "grey50") +
geom_point(size = 2, color = "firebrick4", alpha = 2/3) +
geom_text(data = text,
aes(label = label)) +
scale_x_continuous("Marriage rate residuals", limits = c(-2, 2)) +
coord_cartesian(xlim = range(r$Estimate),
ylim = c(6, 14.1)) +
theme_bw() +
theme(panel.grid = element_blank())
To get the MedianAgeMarriage_s residuals, we have to fit the corresponding model first.
b5.4b <- brm(
data = d,
family = gaussian,
MedianAgeMarriage_s ~ 1 + Marriage_s,
prior = c(prior(normal(0, 10), class = Intercept),
prior(normal(0, 1), class = b),
prior(uniform(0, 10), class = sigma, ub = 10)),
iter = 2000, warmup = 500, chains = 4, cores = 4,
seed = 5,
file = "fits/b05.04b")And now we’ll get the new batch of residuals, do a little data processing, and make a plot corresponding to Figure 5.4.b.
# redefine the annotation data
text <- tibble(
Estimate = c(-0.7, 0.5),
Divorce = 14.1,
label = c("younger", "older"))
# extract the residuals
residuals(b5.4b) %>%
data.frame() %>%
bind_cols(d) %>%
# plot
ggplot(aes(x = Estimate, y = Divorce)) +
stat_smooth(method = "lm", fullrange = T,
color = "firebrick4", fill = "firebrick4",
alpha = 1/5, linewidth = 1/2) +
geom_vline(xintercept = 0, linetype = 2, color = "grey50") +
geom_point(size = 2, color = "firebrick4", alpha = 2/3) +
geom_text(data = text,
aes(label = label)) +
scale_x_continuous("Age of marriage residuals", limits = c(-2, 3)) +
coord_cartesian(xlim = range(r$Estimate),
ylim = c(6, 14.1)) +
theme_bw() +
theme(panel.grid = element_blank())
So what’s the point of all this? There’s direct value in seeing the model-based predictions displayed against the outcome, after subtracting out the influence of other predictors. The plots in Figure 5.4 do this. But this procedure also brings home the message that regression models answer with the remaining association of each predictor with the outcome, after already knowing the other predictors. In computing the predictor residual plots, you had to perform those calculations yourself. In the unified [multivariable] model, it all happens automatically. (p. 129)
5.1.3.2 Counterfactual plots
A second sort of inferential plot displays the implied predictions of the model. I call these plots counterfactual, because they can be produced for any values of the predictor variable you like, even unobserved or impossible combinations like very high median age of marriage and very high marriage rate. There are no States with this combination, but in a counterfactual plot, you can ask the model for a prediction for such a State. (p. 129, emphasis in the original)

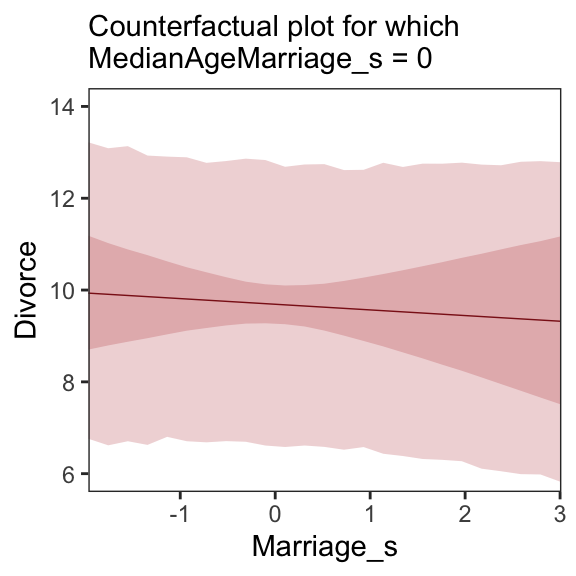

Making Figure 5.5.a requires a little more data wrangling than before.
# we need new `nd` data
nd <- tibble(
Marriage_s = seq(from = -3, to = 3, length.out = 30),
MedianAgeMarriage_s = mean(d$MedianAgeMarriage_s))
fitted(b5.3, newdata = nd) %>%
data.frame() %>%
# since `fitted()` and `predict()` name their intervals the same way,
# we'll need to `rename()` them to keep them straight
rename(f_ll = Q2.5,
f_ul = Q97.5) %>%
# note how we're just nesting the `predict()` code right inside `bind_cols()`
bind_cols(
predict(b5.3, newdata = nd) %>%
data.frame() %>%
# since we only need the intervals, we'll use `transmute()` rather than `mutate()`
transmute(p_ll = Q2.5,
p_ul = Q97.5),
# now tack on the `nd` data
nd) %>%
# we're finally ready to plot
ggplot(aes(x = Marriage_s, y = Estimate)) +
geom_ribbon(aes(ymin = p_ll, ymax = p_ul),
fill = "firebrick", alpha = 1/5) +
geom_smooth(aes(ymin = f_ll, ymax = f_ul),
stat = "identity",
fill = "firebrick", color = "firebrick4", alpha = 1/5, linewidth = 1/4) +
labs(subtitle = "Counterfactual plot for which\nMedianAgeMarriage_s = 0",
y = "Divorce") +
coord_cartesian(xlim = range(d$Marriage_s),
ylim = c(6, 14)) +
theme_bw() +
theme(panel.grid = element_blank())
We follow the same process for Figure 5.5.b.
# new data
nd <- tibble(
MedianAgeMarriage_s = seq(from = -3, to = 3.5, length.out = 30),
Marriage_s = mean(d$Marriage_s))
# `fitted()` + `predict()`
fitted(b5.3, newdata = nd) %>%
data.frame() %>%
rename(f_ll = Q2.5,
f_ul = Q97.5) %>%
bind_cols(
predict(b5.3, newdata = nd) %>%
data.frame() %>%
transmute(p_ll = Q2.5,
p_ul = Q97.5),
nd
) %>%
# plot
ggplot(aes(x = MedianAgeMarriage_s, y = Estimate)) +
geom_ribbon(aes(ymin = p_ll, ymax = p_ul),
fill = "firebrick", alpha = 1/5) +
geom_smooth(aes(ymin = f_ll, ymax = f_ul),
stat = "identity",
fill = "firebrick", color = "firebrick4", alpha = 1/5, linewidth = 1/4) +
labs(subtitle = "Counterfactual plot for which\nMarriage_s = 0",
y = "Divorce") +
coord_cartesian(xlim = range(d$MedianAgeMarriage_s),
ylim = c(6, 14)) +
theme_bw() +
theme(panel.grid = element_blank())
A tension with such plots, however, lies in their counterfactual nature. In the small world of the model, it is possible to change median age of marriage without also changing the marriage rate. But is this also possible in the large world of reality? Probably not….
…If our goal is to intervene in the world, there may not be any realistic way to manipulate each predictor without also manipulating the others. This is a serious obstacle to applied science, whether you are an ecologist, an economist, or an epidemiologist [or a psychologist] (p. 131)
5.1.3.3 Posterior prediction plots
“In addition to understanding the estimates, it’s important to check the model fit against the observed data” (p. 131). For more on the topic, check out Gabry and colleagues’ (2019) Visualization in Bayesian workflow or Simpson’s related blog post, Touch me, I want to feel your data.
In this version of Figure 5.6.a, the thin lines are the 95% intervals and the thicker lines are \(\pm\) the posterior \(SD\), both of which are returned when you use fitted().
p1 <- fitted(b5.3) %>%
data.frame() %>%
bind_cols(d) %>%
ggplot(aes(x = Divorce, y = Estimate)) +
geom_abline(linetype = 2, color = "grey50", linewidth = 0.5) +
geom_point(size = 1.5, color = "firebrick4", alpha = 3/4) +
geom_linerange(aes(ymin = Q2.5, ymax = Q97.5),
linewidth = 1/4, color = "firebrick4") +
geom_linerange(aes(ymin = Estimate - Est.Error,
ymax = Estimate + Est.Error),
linewidth = 1/2, color = "firebrick4") +
# Note our use of the dot placeholder, here: https://magrittr.tidyverse.org/reference/pipe.html
geom_text(data = . %>% filter(Loc %in% c("ID", "UT")),
aes(label = Loc),
hjust = 0, nudge_x = - 0.65) +
labs(x = "Observed divorce",
y = "Predicted divorce") +
theme_bw() +
theme(panel.grid = element_blank())
p1

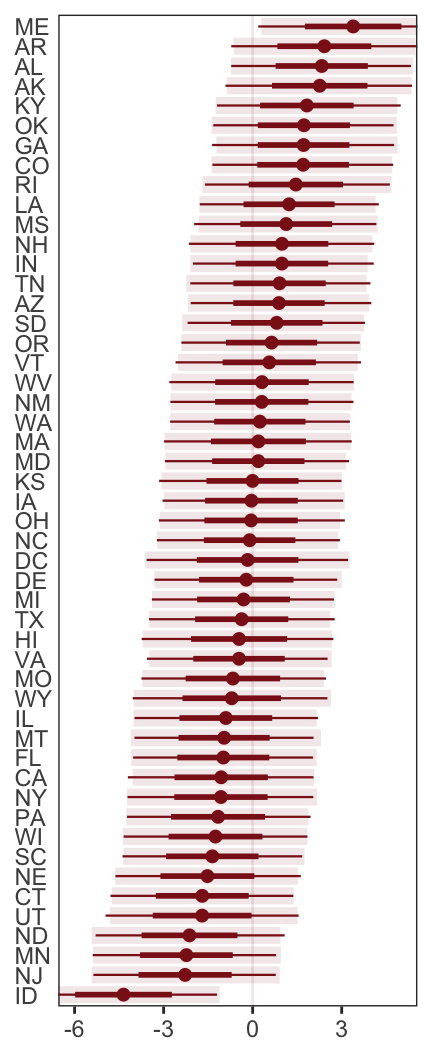

In order to make Figure 5.6.b, we need to clarify the relationships among fitted(), predict(), and residuals(). Here’s my attempt in a table.
tibble(`brms function` = c("fitted", "predict", "residual"),
mean = c("same as the data", "same as the data", "in a deviance-score metric"),
scale = c("excludes sigma", "includes sigma", "excludes sigma")) %>%
knitr::kable()| brms function | mean | scale |
|---|---|---|
| fitted | same as the data | excludes sigma |
| predict | same as the data | includes sigma |
| residual | in a deviance-score metric | excludes sigma |
Hopefully that clarified that if we want to incorporate the prediction interval in a deviance metric, we’ll need to first use predict() and then subtract the intervals from their corresponding Divorce values in the data.
p2 <- residuals(b5.3) %>%
data.frame() %>%
rename(f_ll = Q2.5,
f_ul = Q97.5) %>%
bind_cols(
predict(b5.3) %>%
data.frame() %>%
transmute(p_ll = Q2.5,
p_ul = Q97.5),
d
) %>%
# here we put our `predict()` intervals into a deviance metric
mutate(p_ll = Divorce - p_ll,
p_ul = Divorce - p_ul) %>%
# now plot!
ggplot(aes(x = reorder(Loc, Estimate), y = Estimate)) +
geom_hline(yintercept = 0, linewidth = 1/2,
color = "firebrick4", alpha = 1/10) +
geom_pointrange(aes(ymin = f_ll, ymax = f_ul),
linewidth = 2/5, shape = 20, color = "firebrick4") +
geom_segment(aes(y = Estimate - Est.Error,
yend = Estimate + Est.Error,
x = Loc,
xend = Loc),
linewidth = 1, color = "firebrick4") +
geom_segment(aes(y = p_ll, yend = p_ul,
x = Loc, xend = Loc),
linewidth = 3, color = "firebrick4", alpha = 1/10) +
labs(x = NULL, y = NULL) +
coord_flip(ylim = c(-6, 5)) +
theme_bw() +
theme(axis.text.y = element_text(hjust = 0),
axis.ticks.y = element_blank(),
panel.grid = element_blank())
p2

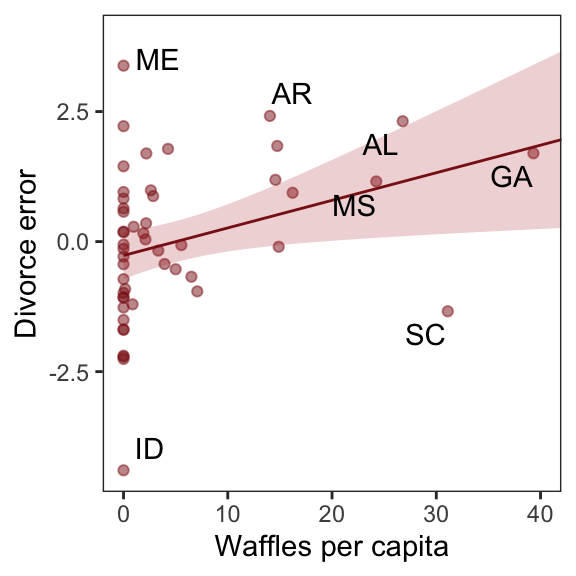

Compared to the last couple plots, Figure 5.6.c is pretty simple.
p3 <- residuals(b5.3) %>%
data.frame() %>%
bind_cols(d) %>%
mutate(wpc = WaffleHouses / Population) %>%
ggplot(aes(x = wpc, y = Estimate)) +
geom_point(size = 1.5, color = "firebrick4", alpha = 1/2) +
stat_smooth(method = "lm", fullrange = T,
color = "firebrick4", linewidth = 1/2,
fill = "firebrick", alpha = 1/5) +
geom_text_repel(data = . %>% filter(Loc %in% c("ME", "AR", "MS", "AL", "GA", "SC", "ID")),
aes(label = Loc),
seed = 5.6) +
scale_x_continuous("Waffles per capita", limits = c(0, 45)) +
ylab("Divorce error") +
coord_cartesian(xlim = range(0, 40)) +
theme_bw() +
theme(panel.grid = element_blank())
p3

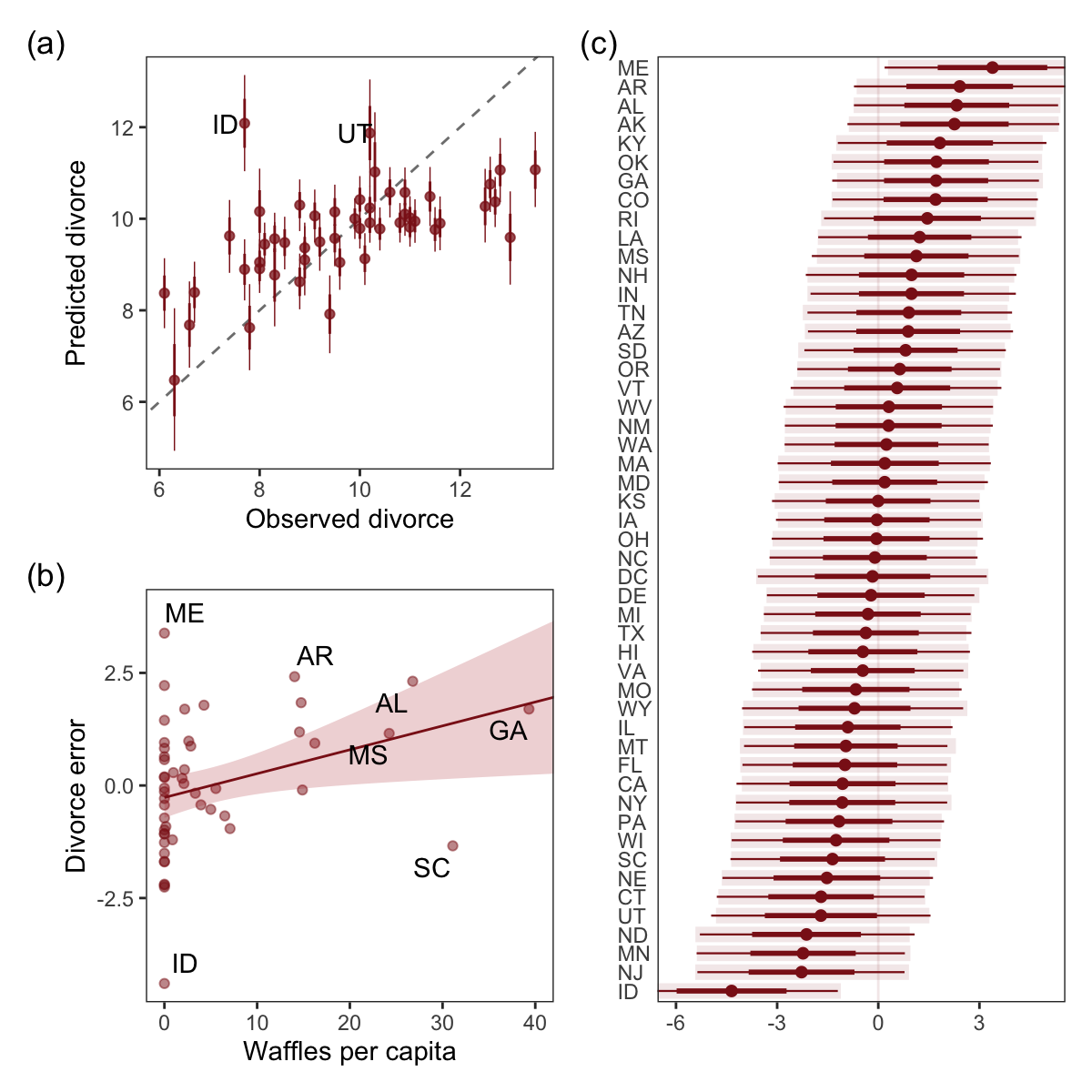

For the sake of good practice, let’s use patchwork syntax to combine those three subplots like they appear in the text.
library(patchwork)
((p1 / p3) | p2) + plot_annotation(tag_levels = "a",
tag_prefix = "(",
tag_suffix = ")")
More McElreath inspiration: “No matter how many predictors you’ve already included in a regression, it’s still possible to find spurious correlations with the remaining variation” (p. 134).
5.1.3.3.1 Rethinking: Stats, huh, yeah what is it good for?
To keep our deflation train going, it’s worthwhile repeating this message:
Often people want statistical modeling to do things that statistical modeling cannot do. For example, we’d like to know whether an effect is real or rather spurious. Unfortunately, modeling merely quantifies uncertainty in the precise way that the model understands the problem. Usually answers to large world questions about truth and causation depend upon information not included in the model. For example, any observed correlation between an outcome and predictor could be eliminated or reversed once another predictor is added to the model. But if we cannot think of another predictor, we might never notice this. Therefore all statistical models are vulnerable to and demand critique, regardless of the precision of their estimates and apparent accuracy of their predictions. (p. 134)
5.1.3.3.2 Overthinking: Simulating spurious association
Simulate the spurious predictor data.
n <- 100 # number of cases
set.seed(5) # setting the seed makes the results reproducible
d <- tibble(
x_real = rnorm(n), # x_real as Gaussian with mean 0 and SD 1 (i.e., the defaults)
x_spur = rnorm(n, x_real), # x_spur as Gaussian with mean = x_real

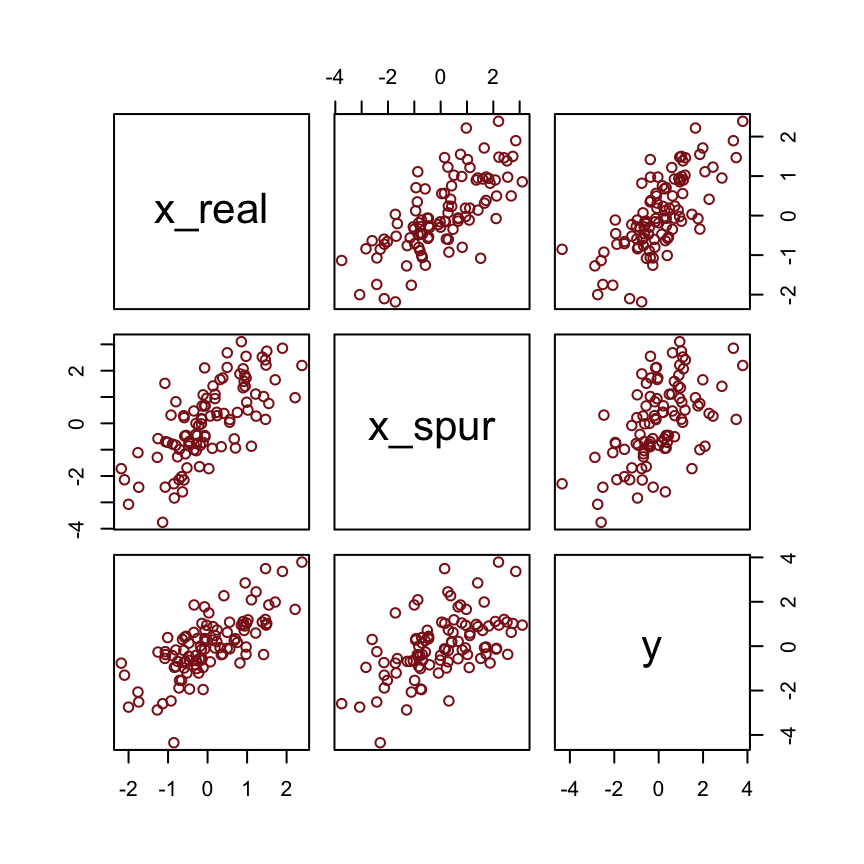

y = rnorm(n, x_real)) # y as Gaussian with mean = x_realHere are the quick pairs() plots.
pairs(d, col = "firebrick4")
We may as well fit a model.
b5.0_spur <- brm(
data = d,
family = gaussian,
y ~ 1 + x_real + x_spur,
prior = c(prior(normal(0, 10), class = Intercept),
prior(normal(0, 1), class = b),
prior(uniform(0, 10), class = sigma, ub = 10)),
iter = 2000, warmup = 500, chains = 4, cores = 4,
seed = 5,
file = "fits/b05.00_spur")fixef(b5.0_spur) %>%
round(digits = 2) Estimate Est.Error Q2.5 Q97.5
Intercept 0.00 0.10 -0.19 0.20
x_real 0.98 0.15 0.69 1.27
x_spur 0.06 0.09 -0.13 0.245.2 Masked relationship
A second reason to use more than one predictor variable is to measure the direct influences of multiple factors on an outcome, when none of those influences is apparent from bivariate relationships. This kind of problem tends to arise when there are two predictor variables that are correlated with one another. However, one of these is positively correlated with the outcome and the other is negatively correlated with it. (p. 134)
Let’s load the Hinde & Milligan (2011) milk data.
library(rethinking)
data(milk)
d <- milkUnload rethinking and load brms.
rm(milk)
detach(package:rethinking, unload = T)

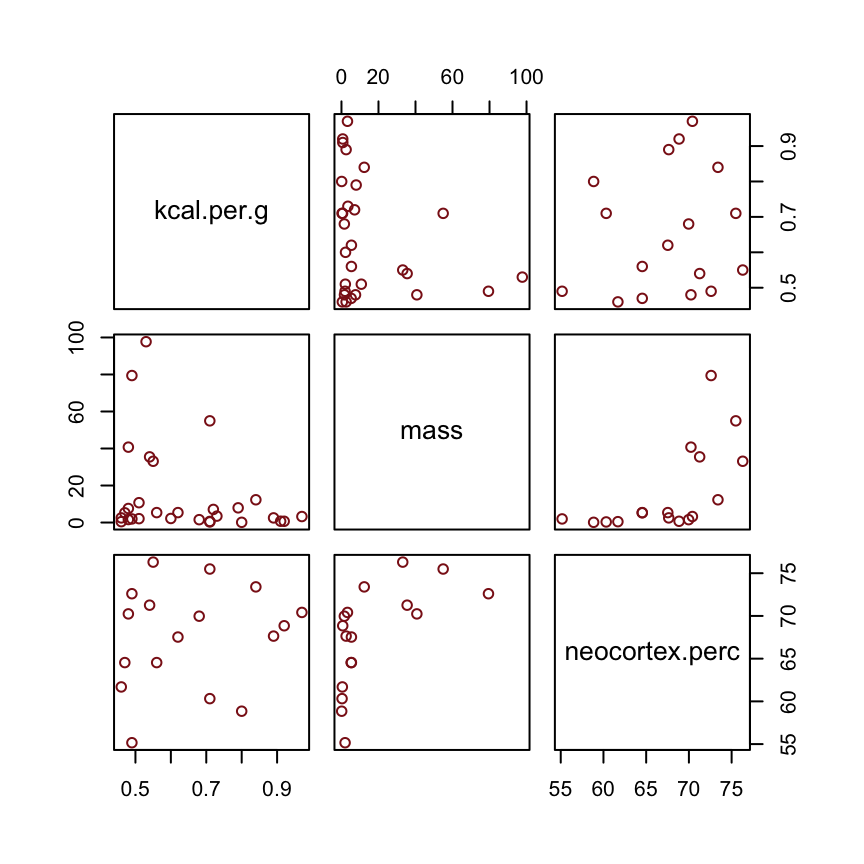

library(brms)You might inspect the data like this.
d %>%
select(kcal.per.g, mass, neocortex.perc) %>%
pairs(col = "firebrick4")
By just looking at that mess, do you think you could describe the associations of mass and neocortex.perc with the criterion, kcal.per.g? I couldn’t. It’s a good thing we have math.
McElreath has us start of with a simple univariable milk model.
b5.5 <- brm(
data = d,
family = gaussian,
kcal.per.g ~ 1 + neocortex.perc,
prior = c(prior(normal(0, 100), class = Intercept),
prior(normal(0, 1), class = b),
prior(uniform(0, 1), class = sigma, ub = 1)),
iter = 2000, warmup = 500, chains = 4, cores = 4,
seed = 5,

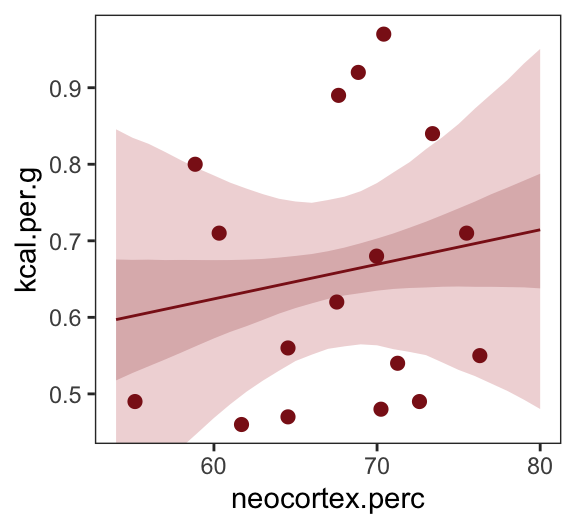

file = "fits/b05.05")Similar to the rethinking example in the text, brms warned that “Rows containing NAs were excluded from the model.” This isn’t necessarily a problem; the model fit just fine. But we should be ashamed of ourselves and look eagerly forward to Chapter 14 where we’ll learn how to do better.
To compliment how McElreath removed cases with missing values on our variables of interest with base R complete.cases(), here we’ll do so with tidyr::drop_na() and a little help with ends_with().
dcc <- d %>%
drop_na(ends_with("_s")) But anyway, let’s inspect the parameter summary.
print(b5.5, digits = 3) Family: gaussian
Links: mu = identity
Formula: kcal.per.g ~ 1 + neocortex.perc
Data: d (Number of observations: 17)
Draws: 4 chains, each with iter = 2000; warmup = 500; thin = 1;
total post-warmup draws = 6000
Regression Coefficients:
Estimate Est.Error l-95% CI u-95% CI Rhat Bulk_ESS Tail_ESS
Intercept 0.353 0.569 -0.816 1.505 1.001 5074 3735
neocortex.perc 0.005 0.008 -0.013 0.022 1.001 5072 3742
Further Distributional Parameters:
Estimate Est.Error l-95% CI u-95% CI Rhat Bulk_ESS Tail_ESS
sigma 0.194 0.039 0.134 0.289 1.002 3750 3628
Draws were sampled using sampling(NUTS). For each parameter, Bulk_ESS
and Tail_ESS are effective sample size measures, and Rhat is the potential
scale reduction factor on split chains (at convergence, Rhat = 1).Did you notice now we set digits = 3 within print() much the way McElreath set digits=3 within precis()?
To get the brms answer to what McElreath did with coef(), we can use the fixef() function.
fixef(b5.5)[2] * (76 - 55)[1] 0.09478424Yes, indeed, “that’s less than 0.1 kilocalories” (p. 137).
Just for kicks, we’ll superimpose 50% intervals atop 95% intervals for the next few plots. Here’s Figure 5.7, top left.
nd <- tibble(neocortex.perc = 54:80)
fitted(b5.5,
newdata = nd,
probs = c(.025, .975, .25, .75)) %>%
data.frame() %>%
bind_cols(nd) %>%
ggplot(aes(x = neocortex.perc, y = Estimate)) +
geom_ribbon(aes(ymin = Q2.5, ymax = Q97.5),
fill = "firebrick", alpha = 1/5) +
geom_smooth(aes(ymin = Q25, ymax = Q75),
stat = "identity",
fill = "firebrick4", color = "firebrick4", alpha = 1/5, linewidth = 1/2) +
geom_point(data = dcc,
aes(y = kcal.per.g),
size = 2, color = "firebrick4") +
ylab("kcal.per.g") +
coord_cartesian(xlim = range(dcc$neocortex.perc),
ylim = range(dcc$kcal.per.g)) +
theme_bw() +
theme(panel.grid = element_blank())
Do note the probs argument in the fitted() code, above. Let’s make the log_mass variable.
dcc <- dcc %>%
mutate(log_mass = log(mass))Now we use log_mass as the new sole predictor.
b5.6 <- brm(
data = dcc,
family = gaussian,
kcal.per.g ~ 1 + log_mass,
prior = c(prior(normal(0, 100), class = Intercept),
prior(normal(0, 1), class = b),
prior(uniform(0, 1), class = sigma, ub = 1)),
iter = 2000, warmup = 500, chains = 4, cores = 4,
seed = 5,
file = "fits/b05.06")print(b5.6, digits = 3) Family: gaussian
Links: mu = identity
Formula: kcal.per.g ~ 1 + log_mass
Data: dcc (Number of observations: 29)
Draws: 4 chains, each with iter = 2000; warmup = 500; thin = 1;
total post-warmup draws = 6000
Regression Coefficients:
Estimate Est.Error l-95% CI u-95% CI Rhat Bulk_ESS Tail_ESS
Intercept 0.687 0.040 0.608 0.768 1.000 5442 4129
log_mass -0.032 0.018 -0.068 0.004 1.000 6068 4368
Further Distributional Parameters:
Estimate Est.Error l-95% CI u-95% CI Rhat Bulk_ESS Tail_ESS
sigma 0.162 0.023 0.124 0.215 1.000 3994 3142
Draws were sampled using sampling(NUTS). For each parameter, Bulk_ESS
and Tail_ESS are effective sample size measures, and Rhat is the potential

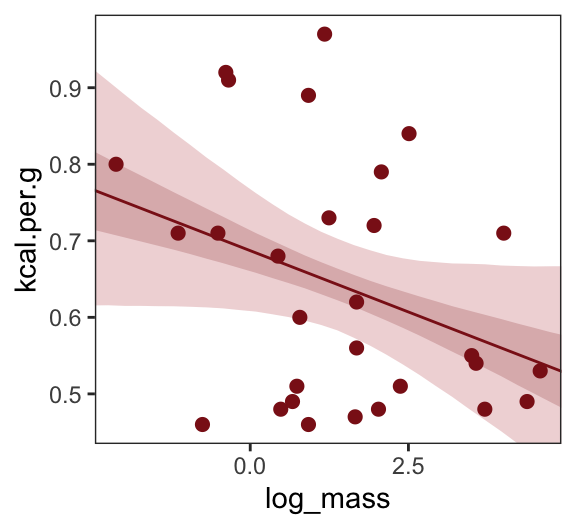

scale reduction factor on split chains (at convergence, Rhat = 1).Make Figure 5.7, top right.
nd <- tibble(log_mass = seq(from = -2.5, to = 5, length.out = 30))
fitted(b5.6,
newdata = nd,
probs = c(.025, .975, .25, .75)) %>%
data.frame() %>%
bind_cols(nd) %>%
ggplot(aes(x = log_mass, y = Estimate)) +
geom_ribbon(aes(ymin = Q2.5, ymax = Q97.5),
fill = "firebrick", alpha = 1/5) +
geom_smooth(aes(ymin = Q25, ymax = Q75),
stat = "identity",
fill = "firebrick4", color = "firebrick4", alpha = 1/5, linewidth = 1/2) +
geom_point(data = dcc,
aes(y = kcal.per.g),
size = 2, color = "firebrick4") +
ylab("kcal.per.g") +
coord_cartesian(xlim = range(dcc$log_mass),
ylim = range(dcc$kcal.per.g)) +
theme_bw() +
theme(panel.grid = element_blank())
Finally, we’re ready to fit with both predictors included in the “joint model.” Here’s the statistical formula:
\[\begin{align*} \text{kcal.per.g}_i & \sim \operatorname{Normal}(\mu_i, \sigma) \\ \mu_i & = \alpha + \beta_1 \text{neocortex.perc}_i + \beta_2 \log (\text{mass}_i) \\ \alpha & \sim \operatorname{Normal}(0, 100) \\ \beta_1 & \sim \operatorname{Normal}(0, 1) \\ \beta_2 & \sim \operatorname{Normal}(0, 1) \\ \sigma & \sim \operatorname{Uniform}(0, 1). \end{align*}\]
Fit the model.
b5.7 <- brm(
data = dcc,
family = gaussian,
kcal.per.g ~ 1 + neocortex.perc + log_mass,
prior = c(prior(normal(0, 100), class = Intercept),
prior(normal(0, 1), class = b),
prior(uniform(0, 1), class = sigma, ub = 1)),
iter = 2000, warmup = 1000, chains = 4, cores = 4,
seed = 5,
file = "fits/b05.07")print(b5.7, digits = 3) Family: gaussian
Links: mu = identity
Formula: kcal.per.g ~ 1 + neocortex.perc + log_mass
Data: dcc (Number of observations: 17)
Draws: 4 chains, each with iter = 2000; warmup = 1000; thin = 1;
total post-warmup draws = 4000
Regression Coefficients:
Estimate Est.Error l-95% CI u-95% CI Rhat Bulk_ESS Tail_ESS
Intercept -1.069 0.584 -2.235 0.082 1.003 2109 2039
neocortex.perc 0.028 0.009 0.009 0.046 1.004 2028 1891
log_mass -0.096 0.028 -0.151 -0.040 1.002 1967 1854
Further Distributional Parameters:
Estimate Est.Error l-95% CI u-95% CI Rhat Bulk_ESS Tail_ESS
sigma 0.139 0.030 0.096 0.212 1.002 1981 1867
Draws were sampled using sampling(NUTS). For each parameter, Bulk_ESS
and Tail_ESS are effective sample size measures, and Rhat is the potential
scale reduction factor on split chains (at convergence, Rhat = 1).Make Figure 5.7, bottom left.
nd <- tibble(neocortex.perc = 54:80 %>% as.double(),
log_mass = mean(dcc$log_mass))
p1 <- b5.7 %>%
fitted(newdata = nd, probs = c(.025, .975, .25, .75)) %>%
data.frame() %>%
bind_cols(nd) %>%
ggplot(aes(x = neocortex.perc, y = Estimate)) +
geom_ribbon(aes(ymin = Q2.5, ymax = Q97.5),
fill = "firebrick", alpha = 1/5) +
geom_smooth(aes(ymin = Q25, ymax = Q75),
stat = "identity",
fill = "firebrick4", color = "firebrick4", alpha = 1/5, linewidth = 1/2) +
geom_point(data = dcc,
aes(y = kcal.per.g),
size = 2, color = "firebrick4") +
ylab("kcal.per.g") +
coord_cartesian(xlim = range(dcc$neocortex.perc),

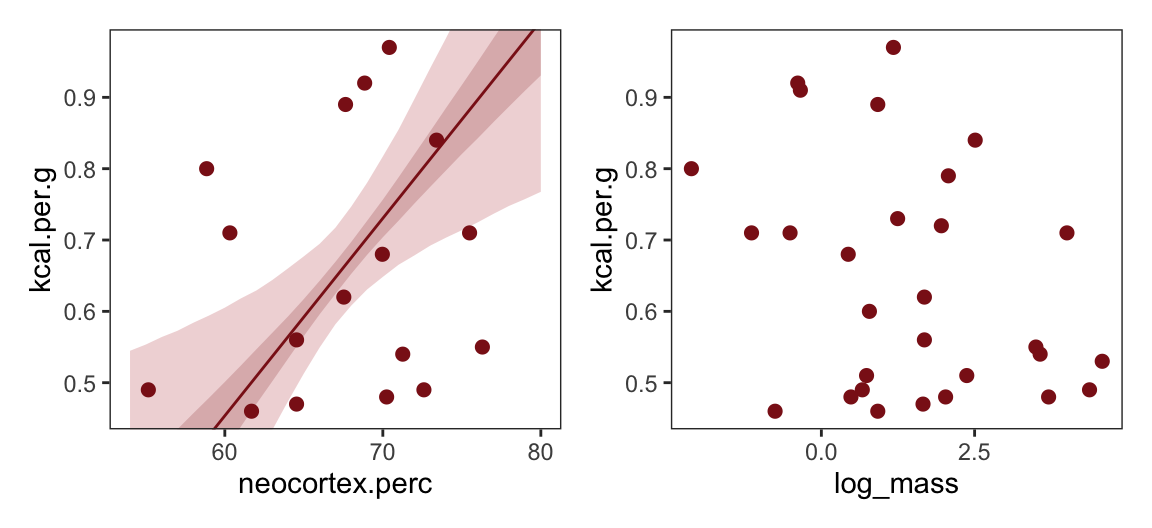

ylim = range(dcc$kcal.per.g))Now make Figure 5.7, bottom right, and combine.
nd <- tibble(log_mass = seq(from = -2.5, to = 5, length.out = 30),
neocortex.perc = mean(dcc$neocortex.perc))
p2 <- b5.7 %>%
fitted(newdata = nd, probs = c(.025, .975, .25, .75)) %>%
data.frame() %>%
bind_cols(nd) %>%
ggplot(aes(x = log_mass, y = Estimate)) +
geom_ribbon(aes(ymin = Q2.5, ymax = Q97.5),
fill = "firebrick", alpha = 1/5) +
geom_smooth(aes(ymin = Q25, ymax = Q75),
stat = "identity",
fill = "firebrick4", color = "firebrick4", alpha = 1/5, linewidth = 1/2) +
geom_point(data = dcc,
aes(y = kcal.per.g),
size = 2, color = "firebrick4") +
ylab("kcal.per.g") +
coord_cartesian(xlim = range(dcc$log_mass),
ylim = range(dcc$kcal.per.g))
(p1 | p2) &
theme_bw() &
theme(panel.grid = element_blank())
What [this regression model did was] ask if species that have high neocortex percent for their body mass have higher milk energy. Likewise, the model [asked] if species with high body mass for their neocortex percent have higher milk energy. Bigger species, like apes, have milk with less energy. But species with more neocortex tend to have richer milk. The fact that these two variables, body size and neocortex, are correlated across species makes it hard to see these relationships, unless we statistically account for both. (pp. 140–141, emphasis in the original)
5.2.0.1 Overthinking: Simulating a masking relationship
Simulate the data.
n <- 100 # number of cases
rho <- .7 # correlation between x_pos and x_neg
set.seed(5) # setting the seed makes the results reproducible
d <- tibble(
x_pos = rnorm(n), # x_pos as a standard Gaussian
x_neg = rnorm(n, rho * x_pos, sqrt(1 - rho^2)), # x_neg correlated with x_pos
y = rnorm(n, x_pos - x_neg)) # y equally associated with x_pos and x_negHere are the quick pairs() plots.

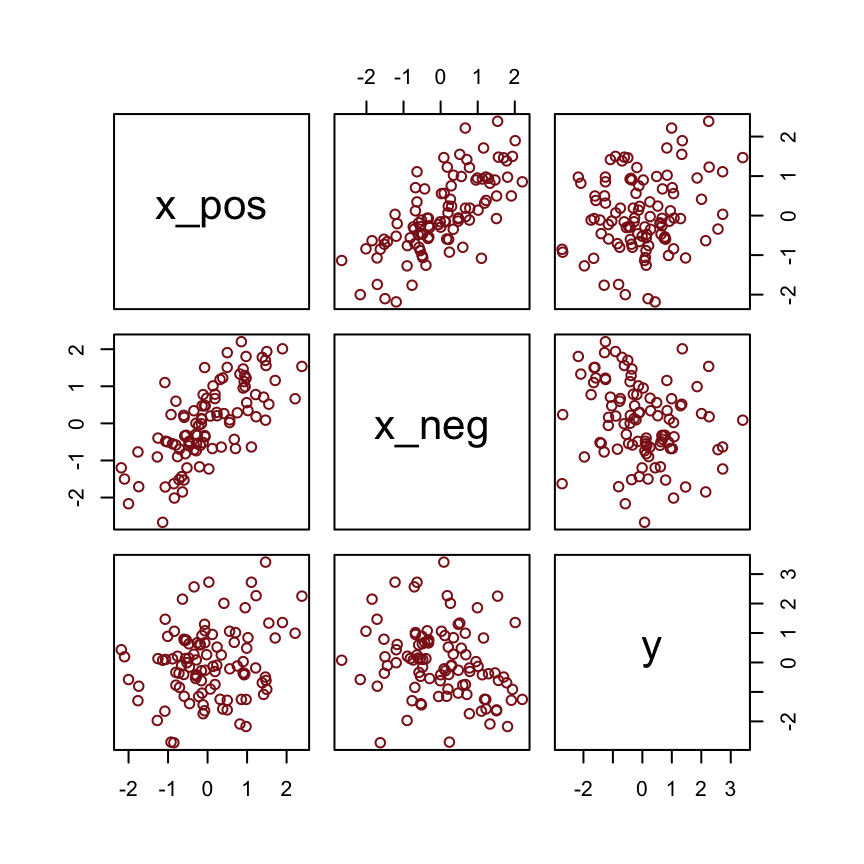

pairs(d, col = "firebrick4")
Here we fit the models with a little help from the update() function.
b5.0_both <- brm(
data = d, family = gaussian,
y ~ 1 + x_pos + x_neg,
prior = c(prior(normal(0, 100), class = Intercept),
prior(normal(0, 1), class = b),
prior(cauchy(0, 1), class = sigma)),
seed = 5,
file = "fits/b05.00_both")
b5.0_pos <- update(
b5.0_both,
formula = y ~ 1 + x_pos,
seed = 5,
file = "fits/b05.00_pos")
b5.0_neg <- update(
b5.0_both,
formula = y ~ 1 + x_neg,
seed = 5,
file = "fits/b05.00_neg")Compare the coefficients.
fixef(b5.0_pos) %>% round(digits = 2) Estimate Est.Error Q2.5 Q97.5
Intercept -0.01 0.12 -0.25 0.22
x_pos 0.26 0.12 0.02 0.50fixef(b5.0_neg) %>% round(digits = 2) Estimate Est.Error Q2.5 Q97.5
Intercept 0.01 0.12 -0.22 0.24
x_neg -0.29 0.11 -0.51 -0.06fixef(b5.0_both) %>% round(digits = 2) Estimate Est.Error Q2.5 Q97.5
Intercept 0.00 0.10 -0.19 0.19
x_pos 0.97 0.15 0.67 1.26
x_neg -0.90 0.13 -1.15 -0.65If you move the value of
rhocloser to zero, this masking phenomenon will diminish. I you makerhocloser to 1 or -1, it will magnify. But ifrhogets very close to 1 or -1, then the two predictors contain exactly the same information, and there’s no hope for any statistical model to tease out the true underlying association used in the simulation. (p. 141)
5.3 Multicollinearity
Multicollinearity means very strong correlation between two or more predictor variables. The consequence of it is that the posterior distribution will say that a very large range of parameter values are plausible, from tiny associations to massive ones, even if all of the variables are in reality strongly associated with the outcome. This frustrating phenomenon arises from the details of how statistical control works. So once you understand multicollinearity, you will better understand [multivariable] models in general. (pp. 141–142)
5.3.1 Multicollinear legs
Let’s simulate some leg data.
n <- 100
set.seed(5)
d <- tibble(height = rnorm(n, mean = 10, sd = 2),
leg_prop = runif(n, min = 0.4, max = 0.5)) %>%
mutate(leg_left = leg_prop * height + rnorm(n, mean = 0, sd = 0.02),
leg_right = leg_prop * height + rnorm(n, mean = 0, sd = 0.02))leg_left and leg_right are highly correlated.
d %>%
select(leg_left:leg_right) %>%
cor() %>%
round(digits = 4) leg_left leg_right
leg_left 1.0000 0.9996

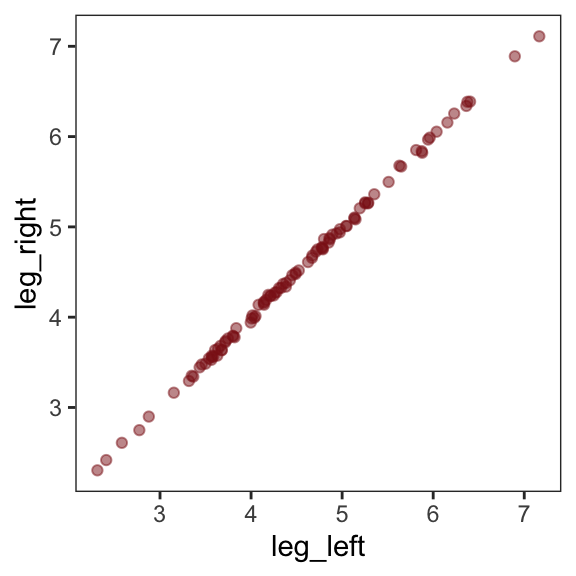

leg_right 0.9996 1.0000Have you ever even seen a \(\rho = .9996\) correlation, before? Here it is in a plot.
d %>%
ggplot(aes(x = leg_left, y = leg_right)) +
geom_point(alpha = 1/2, color = "firebrick4") +
theme_bw() +
theme(panel.grid = element_blank())
Here’s our attempt to predict height with both legs in the model.
b5.8 <- brm(
data = d,
family = gaussian,
height ~ 1 + leg_left + leg_right,
prior = c(prior(normal(10, 100), class = Intercept),
prior(normal(2, 10), class = b),
prior(uniform(0, 10), class = sigma, ub = 10)),
iter = 2000, warmup = 500, chains = 4, cores = 4,
seed = 5,
file = "fits/b05.08")Let’s inspect the damage.
print(b5.8) Family: gaussian
Links: mu = identity
Formula: height ~ 1 + leg_left + leg_right
Data: d (Number of observations: 100)
Draws: 4 chains, each with iter = 2000; warmup = 500; thin = 1;
total post-warmup draws = 6000
Regression Coefficients:
Estimate Est.Error l-95% CI u-95% CI Rhat Bulk_ESS Tail_ESS
Intercept 1.78 0.28 1.21 2.32 1.00 5889 4231
leg_left 0.61 2.17 -3.69 4.88 1.00 2047 2511
leg_right 1.23 2.17 -3.05 5.55 1.00 2050 2513
Further Distributional Parameters:
Estimate Est.Error l-95% CI u-95% CI Rhat Bulk_ESS Tail_ESS
sigma 0.61 0.04 0.53 0.70 1.00 3610 3084
Draws were sampled using sampling(NUTS). For each parameter, Bulk_ESS
and Tail_ESS are effective sample size measures, and Rhat is the potential
scale reduction factor on split chains (at convergence, Rhat = 1).That ‘Est.Error’ column isn’t looking too good. But it’s easy to miss that, which is why McElreath suggested “a graphical view of the [output] is more useful because it displays the posterior [estimates] and [intervals] in a way that allows us with a glance to see that something has gone wrong here” (p. 143).

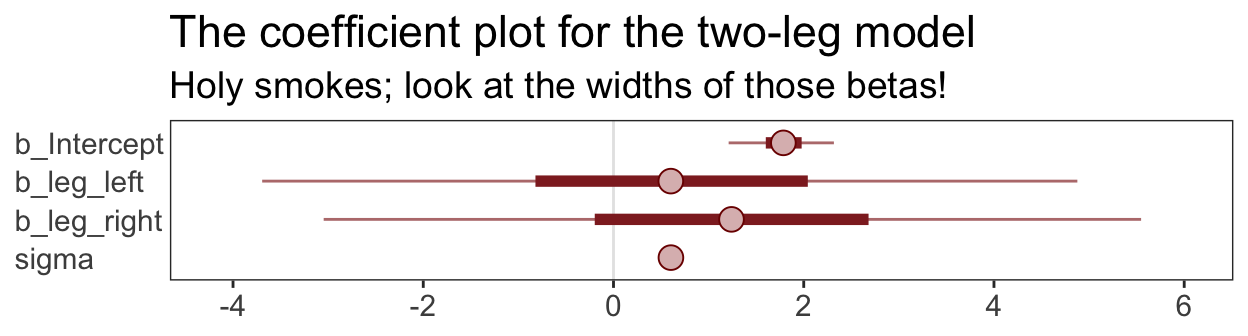

Here’s our coefficient plot using brms::mcmc_plot().
mcmc_plot(b5.8,
type = "intervals",
prob = .5,
prob_outer = .95,
point_est = "median") +
labs(title = "The coefficient plot for the two-leg model",
subtitle = "Holy smokes; look at the widths of those betas!") +
theme_bw() +
theme(text = element_text(size = 14),
axis.text.y = element_text(hjust = 0),
axis.ticks.y = element_blank(),
panel.grid = element_blank())

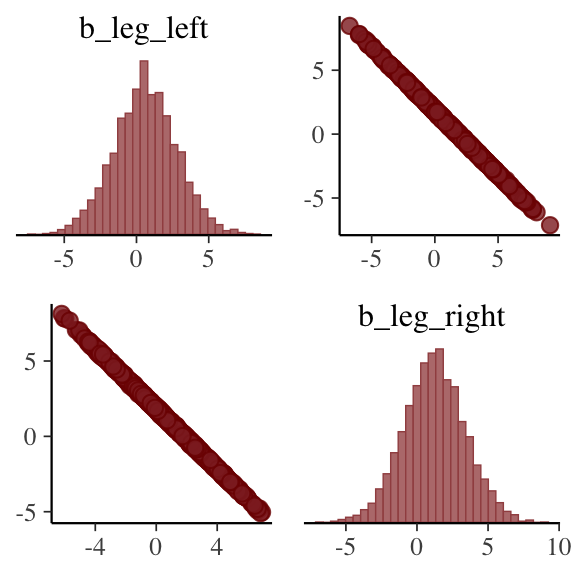

This is perhaps the simplest way to plot the bivariate posterior of our two predictor coefficients, Figure 6.2.a.
pairs(b5.8, variable = variables(b5.8)[2:3])

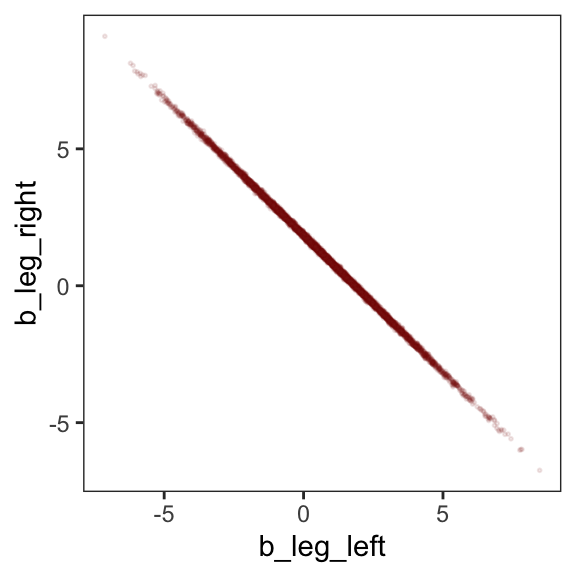

If you’d like a nicer and more focused attempt, you might have to revert to the as_draws_df() function and a little ggplot2 code.
post <- as_draws_df(b5.8)
post %>%
ggplot(aes(x = b_leg_left, y = b_leg_right)) +
geom_point(color = "firebrick", alpha = 1/10, size = 1/3) +
theme_bw() +
theme(panel.grid = element_blank())
While we’re at it, you can make a similar plot with the mcmc_scatter() function.
post %>%
mcmc_scatter(pars = c("b_leg_left", "b_leg_right"),
size = 1/3,
alpha = 1/10) +
theme_bw() +
theme(panel.grid = element_blank())
But wow, those coefficients look about as highly correlated as the predictors, just with the reversed sign.
post %>%
select(b_leg_left:b_leg_right) %>%
cor() b_leg_left b_leg_right
b_leg_left 1.0000000 -0.9996092
b_leg_right -0.9996092 1.0000000On page 165, McElreath clarified that “from the computer’s perspective, this model is simply:”
\[\begin{align*} y_i & \sim \operatorname{Normal}(\mu_i, \sigma) \\ \mu_i & = \alpha + (\beta_1 + \beta_2) x_i. \end{align*}\]

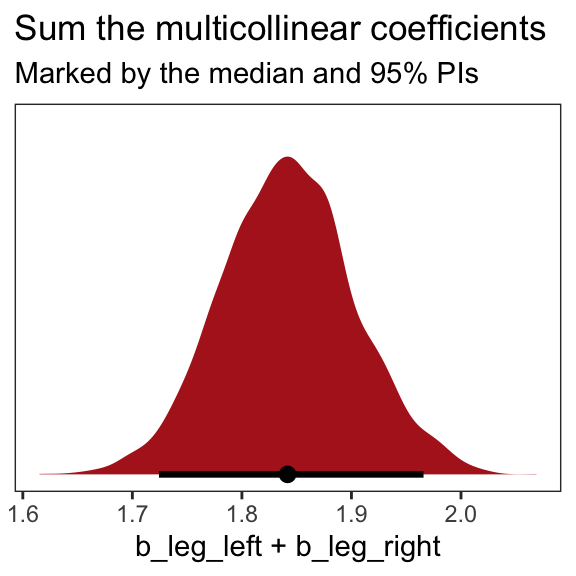

Accordingly, here’s the posterior of the sum of the two regression coefficients, Figure 6.2.b. We’ll use tidybayes::stat_halfeye() to both plot the density and mark off the posterior median and percentile-based 95% probability intervals at its base.
library(tidybayes)
post %>%
ggplot(aes(x = b_leg_left + b_leg_right)) +
stat_halfeye(point_interval = median_qi, .width = .95,
fill = "firebrick") +
scale_y_continuous(NULL, breaks = NULL) +
labs(title = "Sum the multicollinear coefficients",
subtitle = "Marked by the median and 95% PIs") +
theme_bw() +
theme(panel.grid = element_blank())
Now we fit the model after ditching one of the leg lengths.
b5.9 <- brm(
data = d,
family = gaussian,
height ~ 1 + leg_left,
prior = c(prior(normal(10, 100), class = Intercept),
prior(normal(2, 10), class = b),
prior(uniform(0, 10), class = sigma, ub = 10)),
iter = 2000, warmup = 500, chains = 4, cores = 4,
seed = 5,
file = "fits/b05.09")print(b5.9) Family: gaussian
Links: mu = identity
Formula: height ~ 1 + leg_left
Data: d (Number of observations: 100)
Draws: 4 chains, each with iter = 2000; warmup = 500; thin = 1;
total post-warmup draws = 6000
Regression Coefficients:
Estimate Est.Error l-95% CI u-95% CI Rhat Bulk_ESS Tail_ESS
Intercept 1.80 0.30 1.23 2.38 1.00 6120 4300
leg_left 1.84 0.06 1.71 1.96 1.00 6146 4467
Further Distributional Parameters:
Estimate Est.Error l-95% CI u-95% CI Rhat Bulk_ESS Tail_ESS
sigma 0.61 0.04 0.53 0.70 1.00 5361 4219
Draws were sampled using sampling(NUTS). For each parameter, Bulk_ESS
and Tail_ESS are effective sample size measures, and Rhat is the potential
scale reduction factor on split chains (at convergence, Rhat = 1).That posterior \(\textit{SD}\) looks much better. Compare this density to the one in Figure 6.1.b.

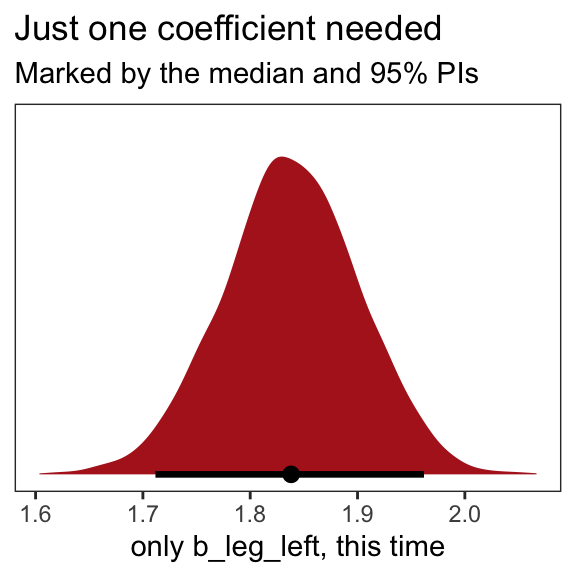

as_draws_df(b5.9) %>%
ggplot(aes(x = b_leg_left)) +
stat_halfeye(point_interval = median_qi, .width = .95,
fill = "firebrick") +
scale_y_continuous(NULL, breaks = NULL) +
labs(title = "Just one coefficient needed",
subtitle = "Marked by the median and 95% PIs",
x = "only b_leg_left, this time") +
theme_bw() +
theme(panel.grid = element_blank())

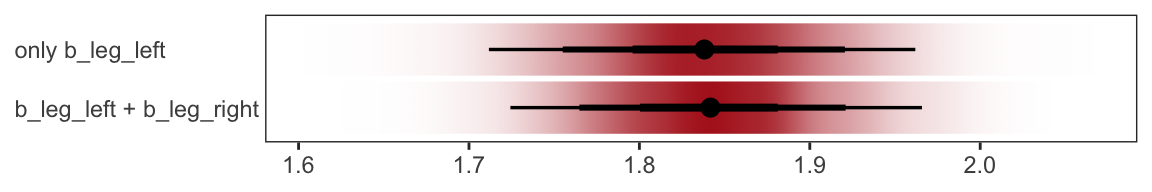

We might also use tidybayes::stat_pointinterval() to compare the posterior of b_leg_left from b5.9 to the joint posterior b_leg_left + b_leg_right from b5.8. For kicks, we’ll depict the posteriors with tidybayes::stat_gradientinterval() and use three levels of posterior intervals.
bind_cols(post %>% transmute(`b_leg_left + b_leg_right` = b_leg_left + b_leg_right),
as_draws_df(b5.9) %>% transmute(`only b_leg_left` = b_leg_left)) %>%
gather() %>%
ggplot(aes(x = value, y = key)) +
stat_gradientinterval(.width = c(.5, .8, .95),
fill = "firebrick") +
labs(x = NULL, y = NULL) +
theme_bw() +
theme(axis.text.y = element_text(hjust = 0),
axis.ticks.y = element_blank(),
panel.grid = element_blank())
The results are within simulation variance of one another.
When two predictor variables are very strongly correlated, including both in a model may lead to confusion. The posterior distribution isn’t wrong, in such a case. It’s telling you that the question you asked cannot be answered with these data. And that’s a great thing for a model to say, that it cannot answer your question. (p. 145, emphasis in the original)
5.3.2 Multicollinear milk
Multicollinearity arises in real data, too.
library(rethinking)
data(milk)
d <- milkUnload rethinking and load brms.
rm(milk)
detach(package:rethinking, unload = TRUE)
library(brms)We’ll follow the text and fit the two univariable models, first. Note our use of the update() function.
# `kcal.per.g` regressed on `perc.fat`
b5.10 <- brm(
data = d,
family = gaussian,
kcal.per.g ~ 1 + perc.fat,
prior = c(prior(normal(.6, 10), class = Intercept),
prior(normal(0, 1), class = b),
prior(uniform(0, 10), class = sigma, ub = 10)),
iter = 2000, warmup = 500, chains = 4, cores = 4,
seed = 5,
file = "fits/b05.10")
# `kcal.per.g` regressed on `perc.lactose`
b5.11 <- update(
b5.10,
newdata = d,
formula = kcal.per.g ~ 1 + perc.lactose,
iter = 2000, warmup = 500, chains = 4, cores = 4,
seed = 5,
file = "fits/b05.11")Compare the coefficient summaries.
posterior_summary(b5.10)[1:3, ] %>% round(digits = 3) Estimate Est.Error Q2.5 Q97.5
b_Intercept 0.301 0.039 0.223 0.380
b_perc.fat 0.010 0.001 0.008 0.012
sigma 0.080 0.012 0.061 0.106posterior_summary(b5.11)[1:3, ] %>% round(digits = 3) Estimate Est.Error Q2.5 Q97.5
b_Intercept 1.166 0.047 1.076 1.260
b_perc.lactose -0.011 0.001 -0.012 -0.009
sigma 0.067 0.010 0.051 0.090If you’d like to get just the 95% intervals similar to the way McElreath reported them in the prose on page 146, you might use the handy posterior_interval() function.
posterior_interval(b5.10)[2, ] %>% round(digits = 3) 2.5% 97.5%
0.008 0.012 posterior_interval(b5.11)[2, ] %>% round(digits = 3) 2.5% 97.5%
-0.012 -0.009 Now “watch what happens when we place both predictor variables in the same regression model” (p. 146).
b5.12 <- update(
b5.11,
newdata = d,
formula = kcal.per.g ~ 1 + perc.fat + perc.lactose,
iter = 2000, warmup = 500, chains = 4, cores = 4,
seed = 5,
file = "fits/b05.12")The posteriors for coefficients, especially for perc.fat, shrank to zero.
posterior_summary(b5.12)[1:4, ] %>% round(digits = 3) Estimate Est.Error Q2.5 Q97.5
b_Intercept 1.005 0.225 0.564 1.457
b_perc.fat 0.002 0.003 -0.003 0.007
b_perc.lactose -0.009 0.003 -0.014 -0.003

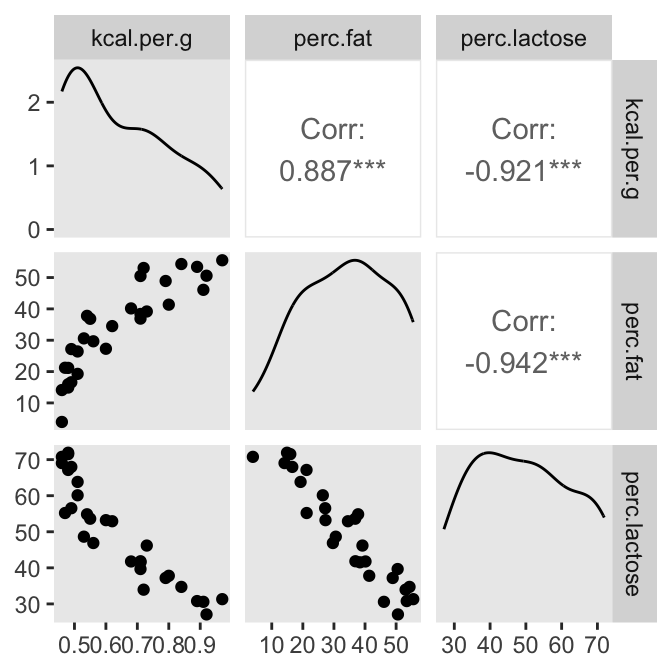

sigma 0.068 0.010 0.052 0.091You can make also pairs plots with GGally (Schloerke et al., 2021), which will also compute the point estimates for the bivariate correlations. Here’s a default plot.
library(GGally)
ggpairs(data = d, columns = c(3:4, 6)) +
theme(panel.grid = element_blank())

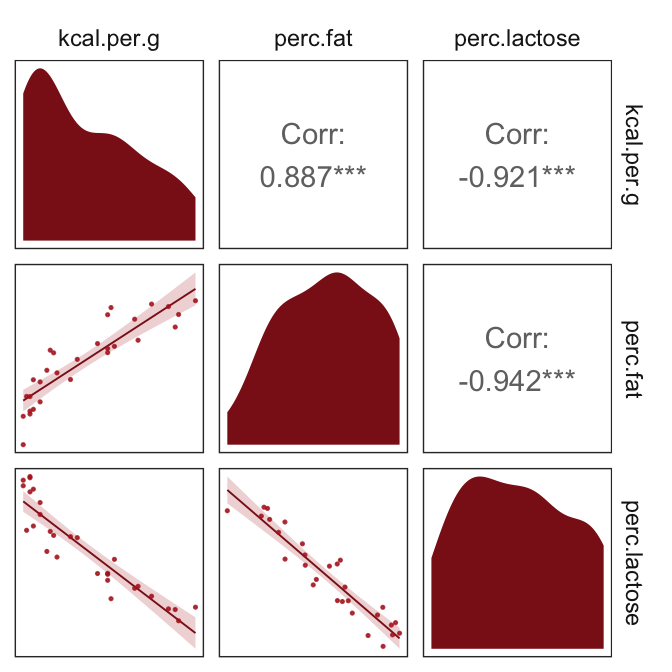

But you can customize these, too. E.g.,
my_diag <- function(data, mapping, ...) {
ggplot(data = data, mapping = mapping) +
geom_density(fill = "firebrick4", linewidth = 0)
}
my_lower <- function(data, mapping, ...) {
ggplot(data = data, mapping = mapping) +
geom_smooth(method = "lm", color = "firebrick4", linewidth = 1/3,
fill = "firebrick", alpha = 1/5) +
geom_point(color = "firebrick", alpha = .8, size = 1/4)
}
# then plug those custom functions into `ggpairs()`
ggpairs(data = d, columns = c(3:4, 6),
diag = list(continuous = my_diag),
lower = list(continuous = my_lower)) +
theme_bw() +
theme(axis.text = element_blank(),
axis.ticks = element_blank(),
panel.grid = element_blank(),
strip.background = element_rect(fill = "white", color = "white"))
Our two predictor “variables are negatively correlated, and so strongly so that they are nearly redundant. Either helps in predicting kcal.per.g, but neither helps much once you already know the other” (p. 148, emphasis in the original). You can really see that on the lower two scatter plots. You’ll note the ggpairs() plot also showed the Pearson’s correlation coefficients, so we don’t need to use the cor() function like McElreath did in the text.
In the next section, we’ll run the simulation necessary for our version of Figure 5.10.
5.3.2.1 Overthinking: Simulating collinearity
First we’ll get the data and define the functions. You’ll note I’ve defined my sim_coll() a little differently from sim.coll() in the text. I’ve omitted rep.sim.coll() as an independent function altogether, but computed similar summary information with the summarise() code at the bottom of the block.
sim_coll <- function(seed, rho) {
set.seed(seed)
d <- d %>%
mutate(x = rnorm(n(),
mean = perc.fat * rho,
sd = sqrt((1 - rho^2) * var(perc.fat))))
m <- lm(kcal.per.g ~ perc.fat + x, data = d)
sqrt(diag(vcov(m)))[2] # parameter SD
}
# how many simulations per `rho`-value would you like?
n_seed <- 100
# how many `rho`-values from 0 to .99 would you like to evaluate the process over?
n_rho <- 30
d <- tibble(seed = 1:n_seed) %>%
expand_grid(rho = seq(from = 0, to = .99, length.out = n_rho)) %>%
mutate(parameter_sd = purrr::map2_dbl(seed, rho, sim_coll)) %>%
group_by(rho) %>%
# we'll `summarise()` our output by the mean and 95% intervals
summarise(mean = mean(parameter_sd),
ll = quantile(parameter_sd, prob = .025),

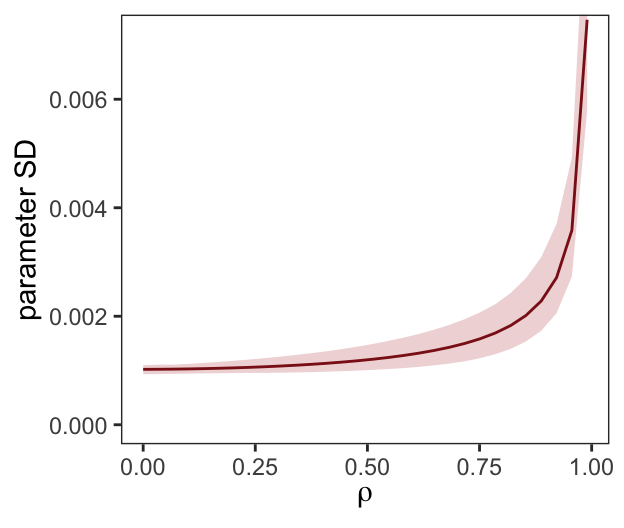

ul = quantile(parameter_sd, prob = .975))We’ve added 95% interval bands to our version of Figure 5.10.
d %>%
ggplot(aes(x = rho, y = mean)) +
geom_smooth(aes(ymin = ll, ymax = ul),
stat = "identity",
fill = "firebrick", color = "firebrick4", alpha = 1/5, linewidth = 1/2) +
labs(x = expression(rho),
y = "parameter SD") +
coord_cartesian(ylim = c(0, .0072)) +
theme_bw() +
theme(panel.grid = element_blank())
Did you notice we used the base R lm() function to fit the models? As McElreath rightly pointed out, lm() presumes flat priors. Proper Bayesian modeling could improve on that. But then we’d have to wait for a whole lot of HMC chains to run and until our personal computers or the algorithms we use to fit our Bayesian models become orders of magnitude faster, we just don’t have time for that.
5.3.3 Post-treatment bias
It helped me understand the next example by mapping out the sequence of events McElreath described in the second paragraph:
- seed and sprout plants
- measure heights
- apply different antifungal soil treatments (i.e., the experimental manipulation)
- measure (a) the heights and (b) the presence of fungus
Based on the design, let’s simulate our data.
n <- 100
set.seed(5)
d <- tibble(
treatment = rep(0:1, each = n / 2),
fungus = rbinom(n, size = 1, prob = .5 - treatment * 0.4),
h0 = rnorm(n, mean = 10, sd = 2),
h1 = h0 + rnorm(n, mean = 5 - 3 * fungus, sd = 1))We’ll use head() to peek at the data.
d %>%
head()# A tibble: 6 × 4
treatment fungus h0 h1
<int> <int> <dbl> <dbl>
1 0 0 12.9 18.9
2 0 1 10.4 13.1
3 0 1 12.0 13.5
4 0 0 8.82 14.6
5 0 0 9.78 14.2
6 0 1 8.15 11.4Fit the model containing fungus as a predictor.
b5.13 <- brm(
data = d,
family = gaussian,
h1 ~ 1 + h0 + treatment + fungus,
prior = c(prior(normal(0, 100), class = Intercept),
prior(normal(0, 10), class = b),
prior(uniform(0, 10), class = sigma, ub = 10)),
iter = 2000, warmup = 500, chains = 4, cores = 4,
seed = 5,
file = "fits/b05.13")print(b5.13) Family: gaussian
Links: mu = identity
Formula: h1 ~ 1 + h0 + treatment + fungus
Data: d (Number of observations: 100)
Draws: 4 chains, each with iter = 2000; warmup = 500; thin = 1;
total post-warmup draws = 6000
Regression Coefficients:
Estimate Est.Error l-95% CI u-95% CI Rhat Bulk_ESS Tail_ESS
Intercept 4.14 0.55 3.07 5.23 1.00 7264 4549
h0 1.09 0.05 0.99 1.19 1.00 7258 4565
treatment -0.00 0.22 -0.43 0.41 1.00 6146 4508
fungus -2.93 0.23 -3.37 -2.48 1.00 6890 4966
Further Distributional Parameters:
Estimate Est.Error l-95% CI u-95% CI Rhat Bulk_ESS Tail_ESS
sigma 1.00 0.07 0.87 1.16 1.00 5729 4322
Draws were sampled using sampling(NUTS). For each parameter, Bulk_ESS
and Tail_ESS are effective sample size measures, and Rhat is the potential
scale reduction factor on split chains (at convergence, Rhat = 1).Now fit the model after excluding fungus, our post-treatment variable.
b5.14 <- update(
b5.13,
formula = h1 ~ 1 + h0 + treatment,
iter = 2000, warmup = 1000, chains = 4, cores = 4,
seed = 5,
file = "fits/b05.14")print(b5.14) Family: gaussian
Links: mu = identity
Formula: h1 ~ h0 + treatment
Data: d (Number of observations: 100)
Draws: 4 chains, each with iter = 2000; warmup = 1000; thin = 1;
total post-warmup draws = 4000
Regression Coefficients:
Estimate Est.Error l-95% CI u-95% CI Rhat Bulk_ESS Tail_ESS
Intercept 3.60 0.89 1.85 5.33 1.00 4709 3039
h0 1.00 0.09 0.84 1.17 1.00 4833 3042
treatment 0.88 0.33 0.23 1.54 1.00 4768 3012
Further Distributional Parameters:
Estimate Est.Error l-95% CI u-95% CI Rhat Bulk_ESS Tail_ESS
sigma 1.67 0.12 1.45 1.93 1.00 4154 3078
Draws were sampled using sampling(NUTS). For each parameter, Bulk_ESS
and Tail_ESS are effective sample size measures, and Rhat is the potential
scale reduction factor on split chains (at convergence, Rhat = 1).“Now the impact of treatment is strong and positive, as it should be” (p. 152). In this case, there were really two outcomes. The first was the one we modeled, the height at the end of the experiment (i.e., h1). The second outcome, which was clearly related to h1, was the presence of fungus, captured by our binomial variable fungus. If you wanted to model that, you’d fit a logistic regression model, which we’ll learn about in Section 10.1.1.
5.4 Categorical variables
Many readers will already know that variables like this, routinely called factors, can easily be included in linear models. But what is not widely understood is how these variables are included in a model… Knowing how the machine works removes a lot of this difficulty. (p. 153, emphasis in the original)
5.4.1 Binary categories
Reload the Howell1 data.
library(rethinking)
data(Howell1)
d <- Howell1Unload rethinking and load brms.
rm(Howell1)
detach(package:rethinking, unload = T)
library(brms)Just in case you forgot what these data were like:
d %>%
glimpse()Rows: 544
Columns: 4
$ height <dbl> 151.7650, 139.7000, 136.5250, 156.8450, 145.4150, 163.8300, 149.2250, 168.9100, 147.9550, 165.1000, 154.3050, 151…
$ weight <dbl> 47.82561, 36.48581, 31.86484, 53.04191, 41.27687, 62.99259, 38.24348, 55.47997, 34.86988, 54.48774, 49.89512, 41.…
$ age <dbl> 63.0, 63.0, 65.0, 41.0, 51.0, 35.0, 32.0, 27.0, 19.0, 54.0, 47.0, 66.0, 73.0, 20.0, 65.3, 36.0, 44.0, 31.0, 12.0,…
$ male <int> 1, 0, 0, 1, 0, 1, 0, 1, 0, 1, 0, 1, 0, 0, 0, 1, 1, 0, 1, 0, 0, 1, 0, 1, 0, 1, 0, 0, 1, 0, 1, 1, 1, 0, 0, 0, 0, 0,…Let’s fit the first height model with the male dummy.
Note. The uniform prior McElreath used in the text in conjunction with the brms::brm() function seemed to cause problems for the HMC chains, here. After experimenting with start values, increasing warmup, and increasing adapt_delta, switching out the uniform prior did the trick. Anticipating Section 8.3.2, I recommend you use a weakly-regularizing half Cauchy for \(\sigma\).
b5.15 <- brm(
data = d,
family = gaussian,
height ~ 1 + male,
prior = c(prior(normal(178, 100), class = Intercept),
prior(normal(0, 10), class = b),
prior(uniform(0, 50), class = sigma, ub = 50)),
iter = 2000, warmup = 500, chains = 4, cores = 4,
seed = 5,
file = "fits/b05.15")“To interpret these estimates, you have to note that the parameter \(\alpha\) ([Intercept]) is now the average height among females” (p. 154).
print(b5.15) Family: gaussian
Links: mu = identity
Formula: height ~ 1 + male
Data: d (Number of observations: 544)
Draws: 4 chains, each with iter = 2000; warmup = 500; thin = 1;
total post-warmup draws = 6000
Regression Coefficients:
Estimate Est.Error l-95% CI u-95% CI Rhat Bulk_ESS Tail_ESS
Intercept 134.84 1.63 131.68 138.03 1.00 6043 4565
male 7.27 2.33 2.73 11.97 1.00 5857 4457
Further Distributional Parameters:
Estimate Est.Error l-95% CI u-95% CI Rhat Bulk_ESS Tail_ESS
sigma 27.41 0.84 25.82 29.10 1.00 6107 4165
Draws were sampled using sampling(NUTS). For each parameter, Bulk_ESS
and Tail_ESS are effective sample size measures, and Rhat is the potential
scale reduction factor on split chains (at convergence, Rhat = 1).Our samples from the posterior are already in the HMC iterations. All we need to do is put them in a data frame and we’ll be well-positioned to compute the intervals for the average height among men.
post <- as_draws_df(b5.15)
post %>%
transmute(male_height = b_Intercept + b_male) %>%
mean_qi(.width = .89)# A tibble: 1 × 6
male_height .lower .upper .width .point .interval
<dbl> <dbl> <dbl> <dbl> <chr> <chr>
1 142. 139. 145. 0.89 mean qi You can also do this with fitted().
nd <- tibble(male = 1)
fitted(b5.15,
newdata = nd) Estimate Est.Error Q2.5 Q97.5
[1,] 142.1109 1.696509 138.7957 145.4332And you could even plot.
fitted(b5.15,
newdata = nd,
summary = F) %>%
data.frame() %>%
set_names("f") %>%
ggplot(aes(x = f)) +
stat_halfeye(point_interval = median_qi, .width = .95,
fill = "firebrick4") +
scale_y_continuous(NULL, breaks = NULL) +
labs(subtitle = "Model-implied male heights",
x = expression(alpha + beta["male"])) +
theme_bw() +
theme(panel.grid = element_blank())
5.4.1.1 Overthinking: Re-parameterizing the model
The reparameterized model follows the form
\[\begin{align*} \text{height}_i & \sim \operatorname{Normal}(\mu_i, \sigma) \\ \mu_i & = \alpha_\text{female} (1 - \text{male}_i) + \alpha_\text{male} \text{male}_i. \end{align*}\]
So then a female dummy would satisfy the condition \(\text{female}_i = (1 - \text{male}_i)\). Let’s make that dummy.
d <- d %>%
mutate(female = 1 - male)Everyone has their own idiosyncratic way of coding. One of my quirks is I always explicitly specify a model’s intercept following the form y ~ 1 + x, where y is the criterion, x stands for the predictors, and 1 is the intercept. You don’t have to do this, of course. You could just code y ~ x to get the same results. The brm() function assumes you want that intercept. One of the reasons I like the verbose version is it reminds me to think about the intercept and to include it in my priors. Another nice feature is that is helps me make sense of the code for this model: height ~ 0 + male + female. When we replace … ~ 1 + … with … ~ 0 + …, we tell brm() to remove the intercept. Removing the intercept allows us to include ALL levels of a given categorical variable in our model. In this case, we’ve expressed sex as two dummies, female and male. Taking out the intercept lets us put both dummies into the formula.
b5.15b <- brm(
data = d,
family = gaussian,
height ~ 0 + male + female,
prior = c(prior(normal(178, 100), class = b),
prior(uniform(0, 50), class = sigma, ub = 50)),
iter = 2000, warmup = 500, chains = 4, cores = 4,
seed = 5,
file = "fits/b05.15b")print(b5.15b) Family: gaussian
Links: mu = identity
Formula: height ~ 0 + male + female
Data: d (Number of observations: 544)
Draws: 4 chains, each with iter = 2000; warmup = 500; thin = 1;
total post-warmup draws = 6000
Regression Coefficients:
Estimate Est.Error l-95% CI u-95% CI Rhat Bulk_ESS Tail_ESS
male 142.33 1.76 138.87 145.74 1.00 5181 4254
female 134.65 1.60 131.61 137.82 1.00 5648 4249
Further Distributional Parameters:
Estimate Est.Error l-95% CI u-95% CI Rhat Bulk_ESS Tail_ESS
sigma 27.43 0.85 25.84 29.17 1.00 6455 4222
Draws were sampled using sampling(NUTS). For each parameter, Bulk_ESS
and Tail_ESS are effective sample size measures, and Rhat is the potential
scale reduction factor on split chains (at convergence, Rhat = 1).If we wanted the formal difference score from such a model, we’d subtract.
as_draws_df(b5.15b) %>%
transmute(dif = b_male - b_female) %>%
ggplot(aes(x = dif)) +
stat_halfeye(point_interval = median_qi, .width = .95,
fill = "firebrick4") +
scale_y_continuous(NULL, breaks = NULL) +
labs(subtitle = "Model-implied difference score",
x = expression(alpha["male"] - alpha["female"])) +
theme_bw() +
theme(panel.grid = element_blank())
5.4.2 Many categories
When there are more than two categories, you’ll need more than one dummy variable. Here’s the general rule: To include \(k\) categories in a linear model, you require \(k - 1\) dummy variables. Each dummy variable indicates, with the value 1, a unique category. The category with no dummy variable assigned to it ends up again as the “intercept” category. (p. 155)
We’ll practice with milk.
library(rethinking)
data(milk)
d <- milkUnload rethinking and load brms.
rm(milk)
detach(package:rethinking, unload = T)
library(brms)With the tidyverse, we can peek at clade with distinct() in the place of base R unique().
d %>%
distinct(clade) clade
1 Strepsirrhine
2 New World Monkey
3 Old World Monkey
4 ApeAs clade has 4 categories, let’s use if_else() to convert these to 4 dummy variables.
d <- d %>%
mutate(clade_nwm = if_else(clade == "New World Monkey", 1, 0),
clade_owm = if_else(clade == "Old World Monkey", 1, 0),
clade_s = if_else(clade == "Strepsirrhine", 1, 0),
clade_ape = if_else(clade == "Ape", 1, 0))Now we’ll fit the model with three of the four dummies. In this model, clade_ape is the reference category captured by the intercept.
b5.16 <- brm(
data = d,
family = gaussian,
kcal.per.g ~ 1 + clade_nwm + clade_owm + clade_s,
prior = c(prior(normal(.6, 10), class = Intercept),
prior(normal(0, 1), class = b),
prior(uniform(0, 10), class = sigma, ub = 10)),
iter = 2000, warmup = 500, chains = 4, cores = 4,
seed = 5,
file = "fits/b05.16")print(b5.16) Family: gaussian
Links: mu = identity
Formula: kcal.per.g ~ 1 + clade_nwm + clade_owm + clade_s
Data: d (Number of observations: 29)
Draws: 4 chains, each with iter = 2000; warmup = 500; thin = 1;
total post-warmup draws = 6000
Regression Coefficients:
Estimate Est.Error l-95% CI u-95% CI Rhat Bulk_ESS Tail_ESS
Intercept 0.55 0.04 0.46 0.63 1.00 4680 4238
clade_nwm 0.17 0.06 0.05 0.29 1.00 5411 4562
clade_owm 0.24 0.07 0.11 0.38 1.00 5380 4195
clade_s -0.04 0.07 -0.18 0.10 1.00 5490 4685
Further Distributional Parameters:
Estimate Est.Error l-95% CI u-95% CI Rhat Bulk_ESS Tail_ESS
sigma 0.13 0.02 0.10 0.17 1.00 4712 4495
Draws were sampled using sampling(NUTS). For each parameter, Bulk_ESS
and Tail_ESS are effective sample size measures, and Rhat is the potential
scale reduction factor on split chains (at convergence, Rhat = 1).Here we grab the chains, our draws from the posterior.
post <- b5.16 %>%
as_draws_df()
head(post)# A draws_df: 6 iterations, 1 chains, and 8 variables
b_Intercept b_clade_nwm b_clade_owm b_clade_s sigma Intercept lprior lp__
1 0.64 0.139 0.046 -0.1080 0.14 0.67 -8.3 5.8
2 0.46 0.208 0.439 0.0232 0.12 0.62 -8.4 6.0
3 0.61 0.115 0.154 -0.1134 0.14 0.65 -8.3 9.6
4 0.54 0.153 0.264 0.0019 0.11 0.64 -8.3 10.7
5 0.57 0.098 0.157 -0.0697 0.13 0.62 -8.3 9.4
6 0.54 0.161 0.300 0.0082 0.16 0.66 -8.3 8.1
# ... hidden reserved variables {'.chain', '.iteration', '.draw'}You might compute averages for each category and summarizing the results with the transpose of base R’s apply() function, rounding to two digits of precision.
post$mu_ape <- post$b_Intercept
post$mu_nwm <- post$b_Intercept + post$b_clade_nwm
post$mu_owm <- post$b_Intercept + post$b_clade_owm
post$mu_s <- post$b_Intercept + post$b_clade_s
round(t(apply(post[, 11:14], 2, quantile, c(.5, .025, .975))), digits = 2) 50% 2.5% 97.5%
.draw 3000.50 150.98 5850.02
mu_ape 0.55 0.46 0.63
mu_nwm 0.71 0.63 0.80
mu_owm 0.79 0.68 0.89Here’s a more tidyverse sort of way to get the same thing, but this time with means and HPDIs via the tidybayes::mean_hdi() function.
post %>%
transmute(mu_ape = b_Intercept,
mu_nwm = b_Intercept + b_clade_nwm,
mu_owm = b_Intercept + b_clade_owm,
mu_s = b_Intercept + b_clade_s) %>%
gather() %>%
group_by(key) %>%
mean_hdi() %>%
mutate_if(is.double, round, digits = 2)# A tibble: 4 × 7
key value .lower .upper .width .point .interval
<chr> <dbl> <dbl> <dbl> <dbl> <chr> <chr>
1 mu_ape 0.55 0.46 0.63 0.95 mean hdi
2 mu_nwm 0.71 0.63 0.8 0.95 mean hdi
3 mu_owm 0.79 0.68 0.89 0.95 mean hdi
4 mu_s 0.51 0.39 0.63 0.95 mean hdi You could also summarize with fitted().
nd <- tibble(clade_nwm = c(1, 0, 0, 0),
clade_owm = c(0, 1, 0, 0),
clade_s = c(0, 0, 1, 0),
primate = c("New World Monkey", "Old World Monkey", "Strepsirrhine", "Ape"))
fitted(b5.16,
newdata = nd,
summary = F) %>%
data.frame() %>%
gather() %>%
mutate(primate = rep(c("New World Monkey", "Old World Monkey", "Strepsirrhine", "Ape"),
each = n() / 4)) %>%
ggplot(aes(x = value, y = reorder(primate, value))) +
stat_halfeye(point_interval = median_qi, .width = .95,
fill = "firebrick4") +
labs(x = "kcal.per.g",
y = NULL) +
theme_bw() +
theme(axis.text.y = element_text(hjust = 0),
axis.ticks.y = element_blank(),
panel.grid = element_blank())
And there are multiple ways to compute summary statistics for the difference between NWM and OWM, too.
# base R
quantile(post$mu_nwm - post$mu_owm, probs = c(.5, .025, .975)) 50% 2.5% 97.5%
-0.07439025 -0.20614807 0.06361969 # tidyverse + tidybayes
post %>%
transmute(dif = mu_nwm - mu_owm) %>%
median_qi()# A tibble: 1 × 6
dif .lower .upper .width .point .interval
<dbl> <dbl> <dbl> <dbl> <chr> <chr>
1 -0.0744 -0.206 0.0636 0.95 median qi 5.4.3 Adding regular predictor variables
If we wanted to fit the model including perc.fat as an additional predictor, the basic statistical formula would be
\[ \mu_i = \alpha + \beta_\text{clade\_nwm} \text{clade\_nwm}_i + \beta_\text{clade\_owm} \text{clade\_owm}_i + \beta_\text{clade\_s} \text{clade\_s}_i + \beta_\text{perc.fat} \text{perc.fat}_i. \]
The corresponding formula argument within brm() would be kcal.per.g ~ 1 + clade_nwm + clade_owm + clade_s + perc.fat.
5.4.4 Another approach: Unique intercepts
“Another way to conceptualize categorical variables is to construct a vector of intercept parameters, one parameter for each category” (p. 158). Using the code below, there’s no need to transform d$clade into d$clade_id. The advantage of this approach is the indices in the model summary are more descriptive than a[1] through a[4].
b5.16_alt <- brm(
data = d,
family = gaussian,
kcal.per.g ~ 0 + clade,
prior = c(prior(normal(.6, 10), class = b),
prior(uniform(0, 10), class = sigma, ub = 10)),
iter = 2000, warmup = 500, chains = 4, cores = 4,
seed = 5,
file = "fits/b05.16_alt")print(b5.16_alt) Family: gaussian
Links: mu = identity
Formula: kcal.per.g ~ 0 + clade
Data: d (Number of observations: 29)
Draws: 4 chains, each with iter = 2000; warmup = 500; thin = 1;
total post-warmup draws = 6000
Regression Coefficients:
Estimate Est.Error l-95% CI u-95% CI Rhat Bulk_ESS Tail_ESS
cladeApe 0.55 0.04 0.46 0.63 1.00 7523 3885
cladeNewWorldMonkey 0.71 0.04 0.63 0.80 1.00 7438 4525
cladeOldWorldMonkey 0.79 0.05 0.68 0.89 1.00 7262 4001
cladeStrepsirrhine 0.51 0.06 0.39 0.62 1.00 7086 4366
Further Distributional Parameters:
Estimate Est.Error l-95% CI u-95% CI Rhat Bulk_ESS Tail_ESS
sigma 0.13 0.02 0.10 0.17 1.00 5503 4485
Draws were sampled using sampling(NUTS). For each parameter, Bulk_ESS
and Tail_ESS are effective sample size measures, and Rhat is the potential
scale reduction factor on split chains (at convergence, Rhat = 1).See? This is much easier than trying to remember which one was which in an arbitrary numeric index.
5.5 Ordinary least squares and lm()
lm()Since this section centers on the frequentist lm() function, I’m going to largely ignore it. A couple things, though. You’ll note how the brms package uses the lm()-like design formula syntax. Although not as pedagogical as the more formal rethinking syntax, it has the advantage of cohering with the popular lme4 (Bates et al., 2015, 2022) syntax for multilevel models.
Also, on page 161 McElreath clarified that one cannot use the I() syntax with his rethinking package. Not so with brms. The I() syntax works just fine with brms::brm(). We’ve already made use of it in the Section 4.5 section of Chapter 4.
Session info
sessionInfo()R version 4.5.1 (2025-06-13)
Platform: aarch64-apple-darwin20
Running under: macOS Ventura 13.4
Matrix products: default
BLAS: /Library/Frameworks/R.framework/Versions/4.5-arm64/Resources/lib/libRblas.0.dylib
LAPACK: /Library/Frameworks/R.framework/Versions/4.5-arm64/Resources/lib/libRlapack.dylib; LAPACK version 3.12.1
locale:
[1] en_US.UTF-8/en_US.UTF-8/en_US.UTF-8/C/en_US.UTF-8/en_US.UTF-8
time zone: America/Chicago
tzcode source: internal
attached base packages:
[1] parallel stats graphics grDevices utils datasets methods base
other attached packages:
[1] GGally_2.4.0 patchwork_1.3.2 tidybayes_3.0.7 bayesplot_1.15.0.9000 tigris_2.2.1
[6] ggrepel_0.9.6 brms_2.23.0 Rcpp_1.1.0 lubridate_1.9.4 forcats_1.0.1
[11] stringr_1.6.0 dplyr_1.1.4 purrr_1.2.1 readr_2.1.5 tidyr_1.3.2
[16] tibble_3.3.1 ggplot2_4.0.1 tidyverse_2.0.0 posterior_1.6.1.9000 cmdstanr_0.9.0
loaded via a namespace (and not attached):
[1] DBI_1.2.3 gridExtra_2.3 inline_0.3.21 sandwich_3.1-1 rlang_1.1.7
[6] magrittr_2.0.4 multcomp_1.4-29 matrixStats_1.5.0 e1071_1.7-16 compiler_4.5.1
[11] mgcv_1.9-3 loo_2.9.0.9000 vctrs_0.7.0 reshape2_1.4.5 pkgconfig_2.0.3
[16] shape_1.4.6.1 arrayhelpers_1.1-0 fastmap_1.2.0 backports_1.5.0 labeling_0.4.3
[21] utf8_1.2.6 rmarkdown_2.30 tzdb_0.5.0 ps_1.9.1 xfun_0.55
[26] jsonlite_2.0.0 uuid_1.2-1 R6_2.6.1 stringi_1.8.7 RColorBrewer_1.1-3
[31] StanHeaders_2.36.0.9000 estimability_1.5.1 rstan_2.36.0.9000 knitr_1.51 zoo_1.8-14
[36] Matrix_1.7-3 splines_4.5.1 timechange_0.3.0 tidyselect_1.2.1 rstudioapi_0.17.1
[41] abind_1.4-8 codetools_0.2-20 curl_7.0.0 processx_3.8.6 pkgbuild_1.4.8
[46] lattice_0.22-7 plyr_1.8.9 withr_3.0.2 bridgesampling_1.2-1 S7_0.2.1
[51] coda_0.19-4.1 evaluate_1.0.5 survival_3.8-3 sf_1.0-21 ggstats_0.11.0
[56] units_1.0-0 proxy_0.4-27 RcppParallel_5.1.11-1 ggdist_3.3.3 pillar_1.11.1
[61] tensorA_0.36.2.1 KernSmooth_2.23-26 checkmate_2.3.3 stats4_4.5.1 distributional_0.5.0
[66] generics_0.1.4 hms_1.1.4 rstantools_2.5.0.9000 scales_1.4.0 xtable_1.8-4
[71] class_7.3-23 glue_1.8.0 emmeans_1.11.2-8 tools_4.5.1 mvtnorm_1.3-3
[76] grid_4.5.1 QuickJSR_1.8.1 nlme_3.1-168 cli_3.6.5 rappdirs_0.3.3
[81] svUnit_1.0.8 Brobdingnag_1.2-9 V8_8.0.1 gtable_0.3.6 digest_0.6.39
[86] classInt_0.4-11 TH.data_1.1-4 htmlwidgets_1.6.4 farver_2.1.2 htmltools_0.5.9
[91] lifecycle_1.0.5 httr_1.4.7 MASS_7.3-65
Comments
